Product Description

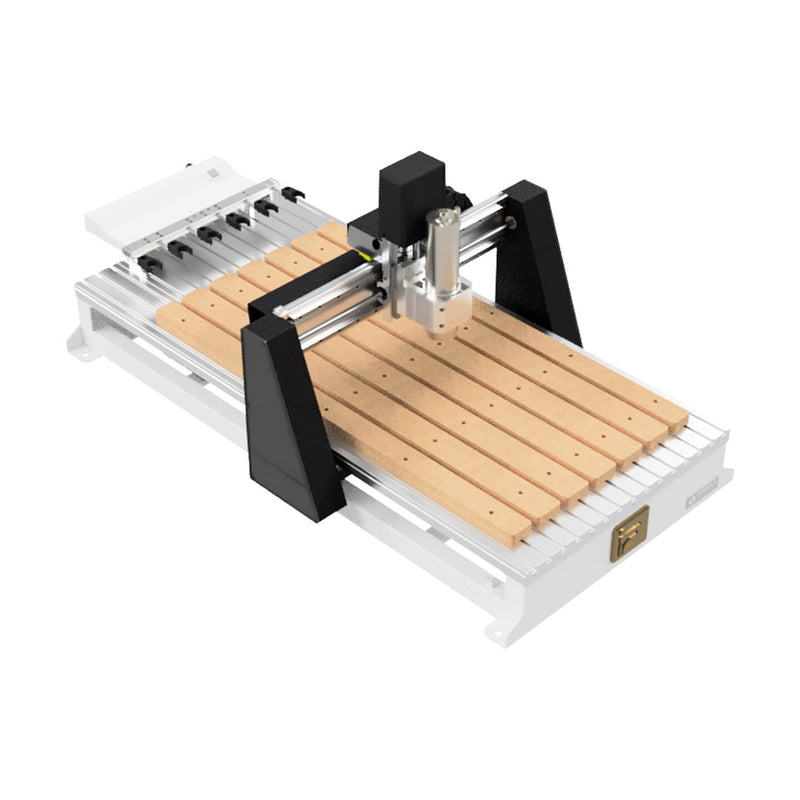

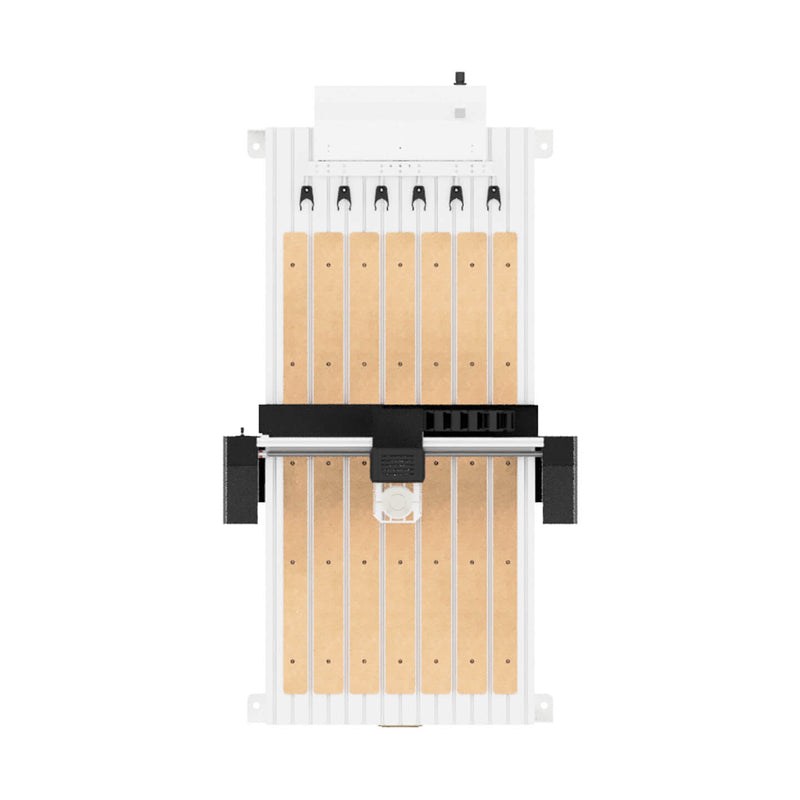

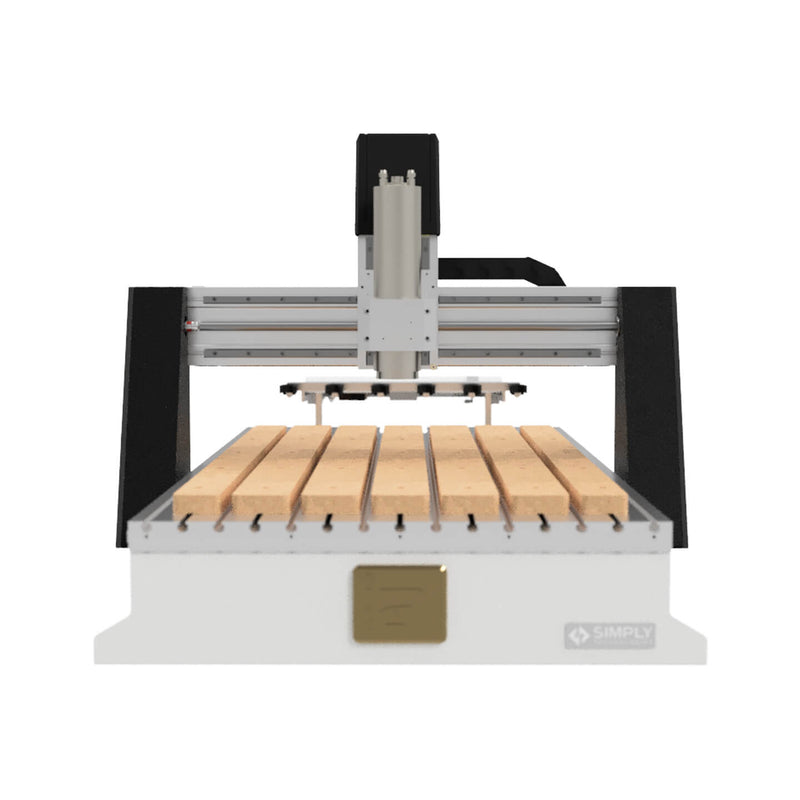

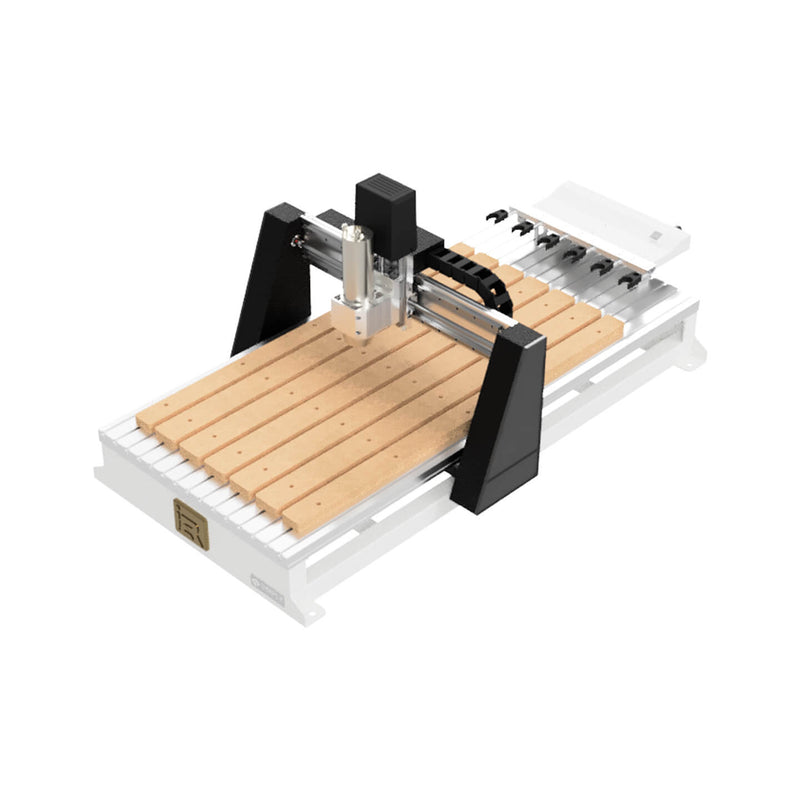

The Performance 8ATC CNC Machine combines industrial-grade precision with automated efficiency, making it the ideal choice for professional woodworkers, small manufacturers, and advanced fabrication shops. Featuring 4-axis capability and rotary machining support, this model is built to handle complex, high-precision cutting tasks with speed and accuracy.
Its rigid, all-welded steel frame, prismatic linear guides, and precision ball screws ensure smooth motion and consistent results across all axes. The 3HP water-cooled electro-spindle paired with an ISO20 Auto Tool Changer (ATC) allows for seamless transitions between tools, reducing downtime and increasing productivity. The high-clearance gantry and millable MDF spoil board provide a true perpendicular cutting surface for flawless finishes.
Powered by the iCNC Controller with a 15.6” touchscreen, onboard memory, and remote access via Android devices, the Performance 8ATC offers intuitive control and real-time toolpath visualization. Prewired for rotary kits and designed for demanding workflows, this machine delivers high-performance results in a compact footprint.
Product Features
-

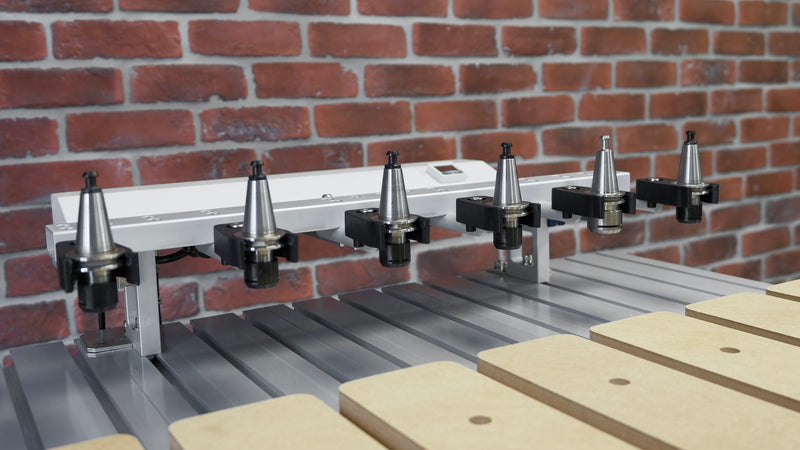

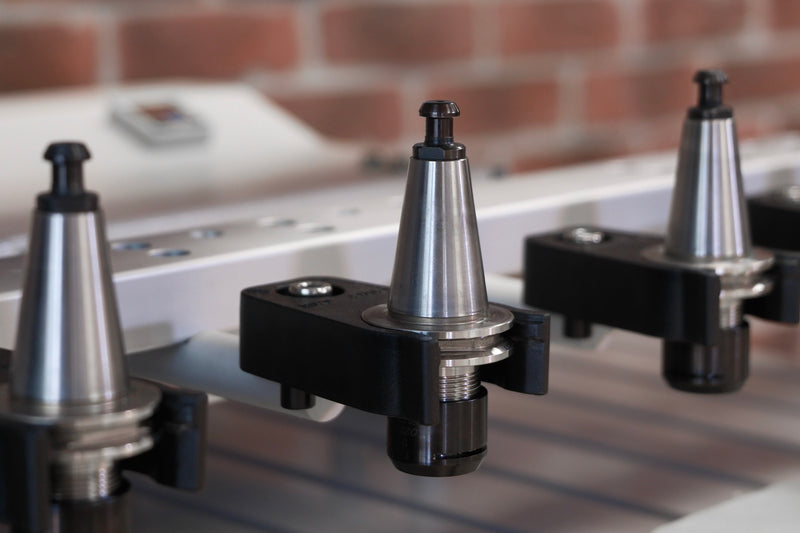

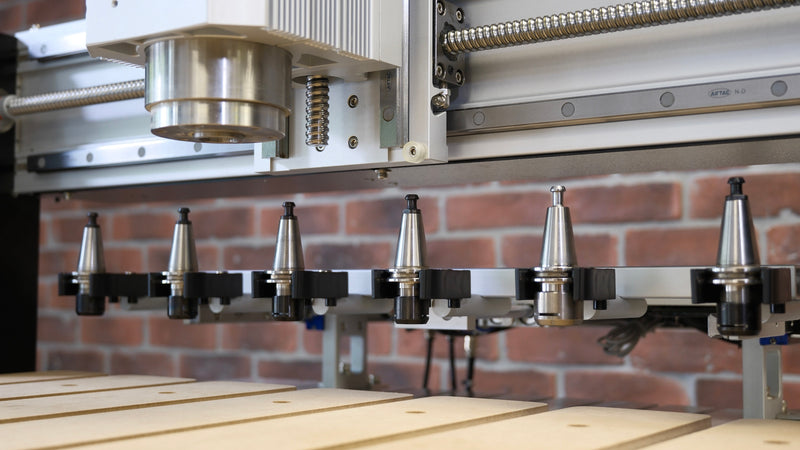

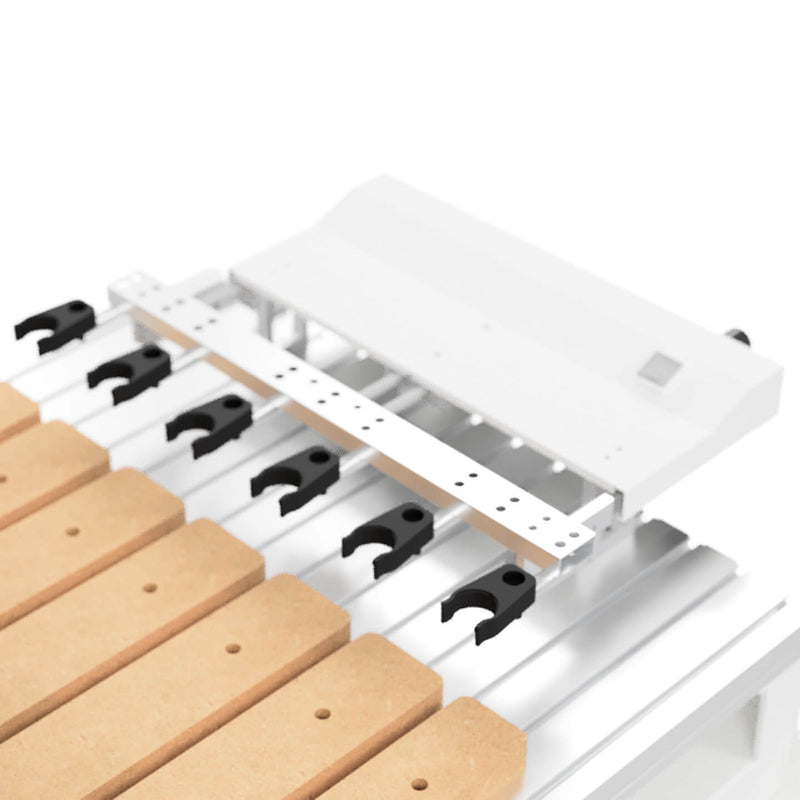

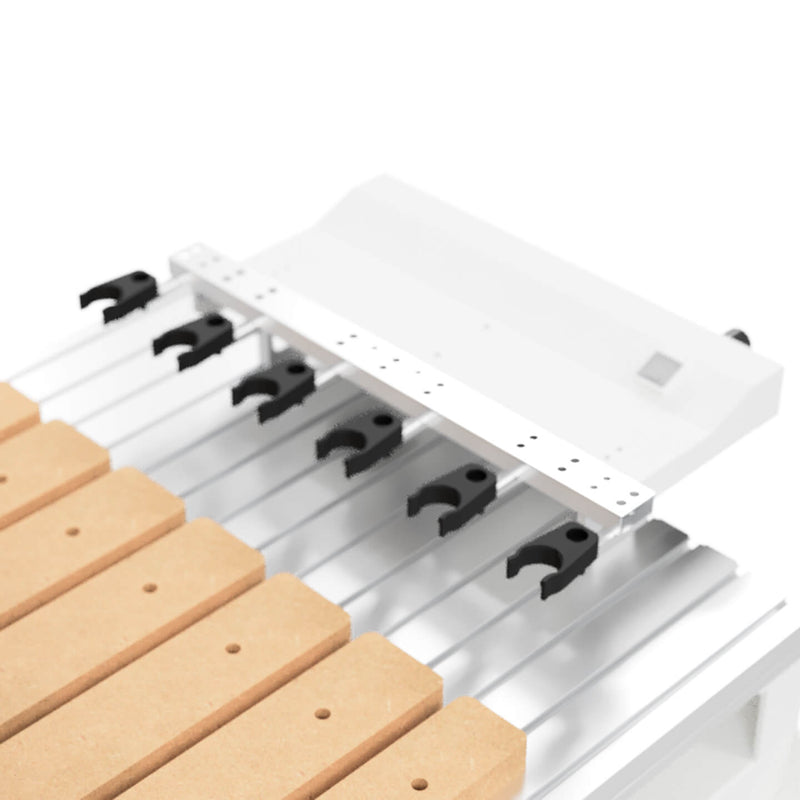

Auto Tool Changer (ATC): ISO20 ATC system enables fast, automated tool changes for multi-step jobs
-
4-Axis Capability: Supports rotary machining for advanced 3D carving and complex cuts
-
Rigid Steel Frame: All-welded construction for maximum stability and vibration reduction
-

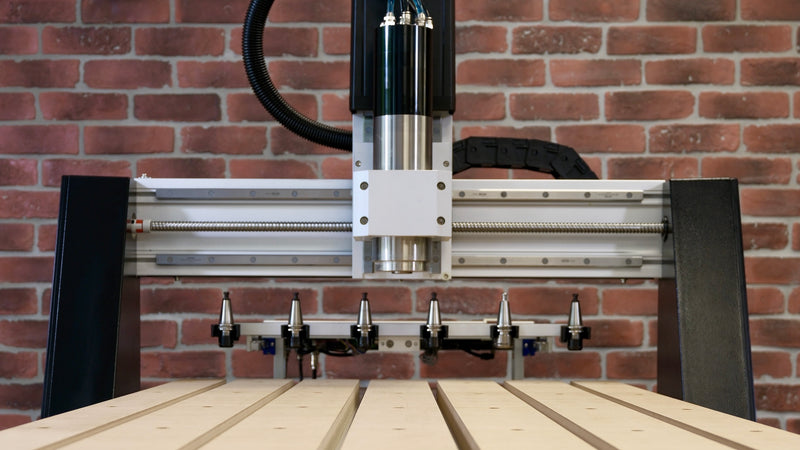

Precision Motion System: Prismatic linear guides and ball screw transmission on X, Y, and Z axes
-
High-Performance Spindle: 3HP water-cooled electro-spindle for consistent, quiet operation
-

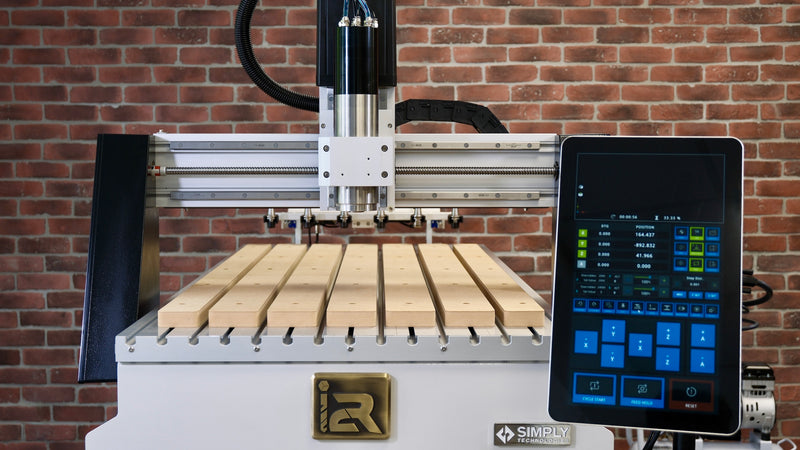

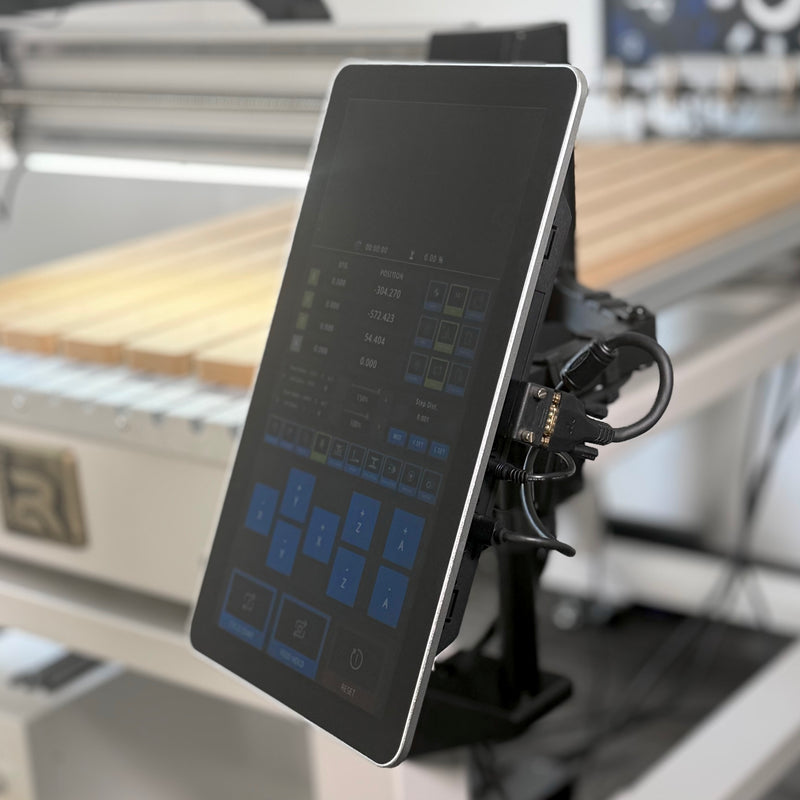

Advanced Control Interface: iCNC Controller with 15.6” touchscreen and Android remote access
-
Rotary Ready: Prewired for rotary axis integration
-
Millable Spoil Board: MDF surface can be flattened for true perpendicular cutting
-
Tool Touch-Off & Onboard Cooling: Included for enhanced accuracy and spindle longevity
-
Compact Footprint: Ideal for workshops requiring high performance in limited space
Product Specifications
-
X Axis Travel: 24″ (610mm)
-
Y Axis Travel: 47.63″ (1210mm)
-
Z Axis Travel: 5.9″ (150mm)
-
Table Work Area: 24″ x 48″
-
Spindle Type: 3HP Water Cooled
-
Spindle Configuration: ISO20 ATC (1/4″ & 1/2″)
-
Controller: iCNC with 15.6” Touchscreen
-
On-Board Memory: Yes
-
Rapid Feed Rate: 300ipm (5m/min)
-
Tool Touch-Off: Included
-
Onboard Cooling: Included
-
Machine Base: Welded Steel
-
Rotary Axis: Yes (Prewired)
-
Resolution: ±0.00393″ (0.10mm)
-
Precision Linear Guides: X / Y / Z
-
Ball Screw Transmission: X / Y / Z
-
Power Requirements: 220V, 50-60Hz, 10A, 1-Phase
-
Working Table: High Rigidity Aluminum Extrusion
-
Gantry Bridge: High Rigidity Aluminum Extrusion
-
Gantry Supports: Aluminum Alloy Gravity Cast
-
Max Gantry Clearance: 6.5″ (165.1mm)
-
Clearance Above Spoil Board: 5.5″ (139.7mm)
-
Machine Dimensions: 62.99″ L x 37.36″ W x 30.27″ H
