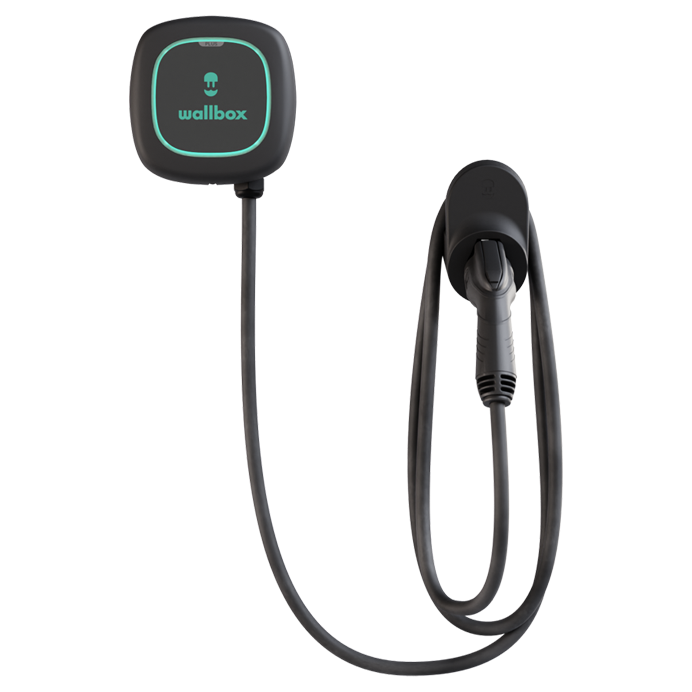

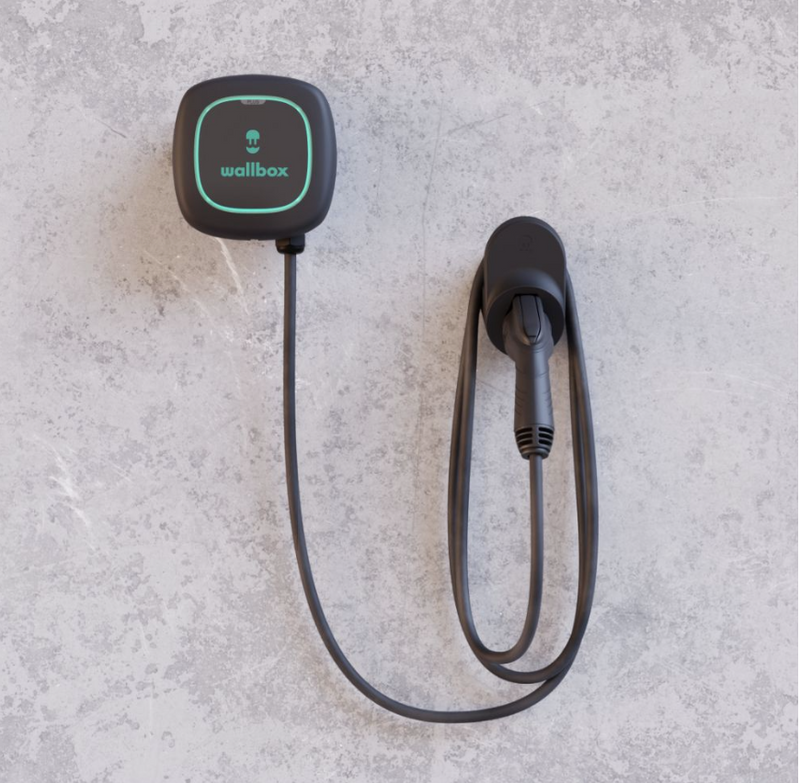

Wallbox Pulsar Plus 40A, Commercial

The Wallbox Pulsar Plus 40A Commercial EV Charger combines compact size with reliable performance for public and shared charging environments. Delivering up to 9.6 kW of Level 2 charging power through a NEMA 14-50 plug, it’s designed for easy installation and dependable operation across residential complexes, workplaces, and community locations.

With built-in Wi-Fi and Bluetooth, the Pulsar Plus integrates seamlessly with the myWallbox app for remote monitoring and management. Thanks to EVmatch integration, property managers and businesses can offer public charging with advanced features including secure payment processing, group management, and access control—turning your EV charger into a managed community resource.

Engineered for versatility, durability, and scalability, the Pulsar Plus 40A Commercial is an ideal choice for businesses, HOAs, and multi-unit dwellings looking to provide smart EV charging.

Why Choose the Wallbox Pulsar Plus 40A Commercial?

• Community-Ready – Designed for shared use in residential complexes, workplaces, and public spaces.
• Smart Management – EVmatch integration for access control, reservations, and payments.
• Fast Level 2 Charging – Adjustable power up to 40A (9.6 kW) for quick turnaround.
• Plug-and-Go Installation – NEMA 14-50 plug for straightforward setup.
• Connected Control – Wi-Fi, Bluetooth, and voice assistant compatibility.
• Durable Design – NEMA 4 weather-resistant enclosure, backed by 3-year warranty.

Specifications

• Brand: Wallbox
• Model: Pulsar Plus 40A Commercial
• Connector Type: SAE J1772 (Type 1)
• Maximum Output: 40A | 9.6 kW
• Input Voltage: 240/208V AC via NEMA 14-50 plug
• Adjustable Current: 6A–40A
• Connectivity: Wi-Fi, Bluetooth, myWallbox app, Alexa/Google Assistant
• Cable Length: 25 ft.
• Dimensions: 7.8" x 7.9" x 3.9"
• Enclosure Rating: NEMA 4 (indoor/outdoor)
• Certifications: UL 2594, UL 2231, FCC Part 15 Class B
• Warranty: 3 years
