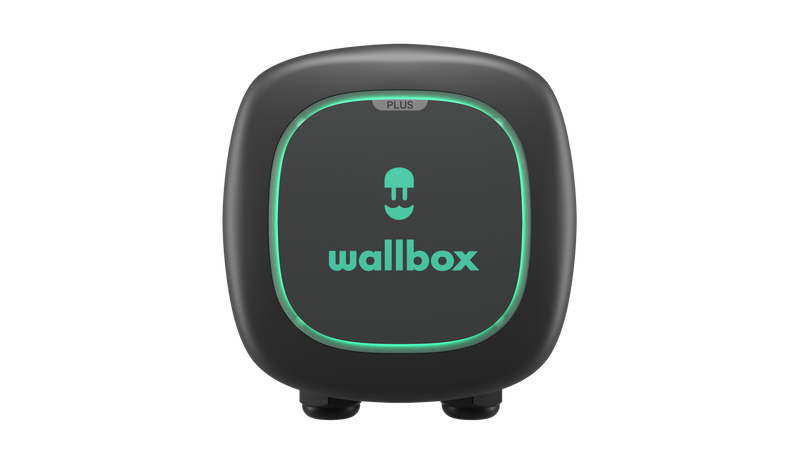

Wallbox Pulsar Plus 48A, Commercial, Hardwire

The Wallbox Pulsar Plus 48A Commercial delivers maximum Level 2 charging performance in a compact, hardwired design. With up to 11.5 kW of output, it’s built to handle high-demand environments like workplaces, multi-unit residences, and public charging stations—providing fast, efficient charging for every EV on the road.

Designed with smart connectivity in mind, the Pulsar Plus links to the myWallbox app via Wi-Fi or Bluetooth, enabling remote monitoring, scheduling, and usage tracking. Integration with EVmatch transforms this charger into a managed community resource, with features such as secure payment processing, access control, and group management.

Engineered for commercial reliability and scalability, the Pulsar Plus 48A is a future-ready solution for organizations and property managers looking to offer professional-grade EV charging.

Why Choose the Wallbox Pulsar Plus 48A Commercial?

• High-Power Charging – Adjustable output up to 48A (11.5 kW) for fast Level 2 charging.
• Commercial-Ready – Hardwired installation ensures secure, reliable performance.
• Smart Connectivity – Wi-Fi, Bluetooth, and myWallbox app for full control and monitoring.
• EVmatch Integration – Enable access control, reservations, and seamless payment management.
• Durable Design – Matte black finish with NEMA 4 enclosure for indoor/outdoor use.
• Certified & Supported – UL listed and backed by a 3-year warranty.

Specifications

• Brand: Wallbox
• Model: Pulsar Plus 48A Commercial Hardwired
• Connector Type: SAE J1772 (Type 1)
• Maximum Output: 48A | 11.5 kW
• Input Voltage: 240/208V AC | Hardwired only
• Adjustable Current: 6A–48A
• Connectivity: Wi-Fi, Bluetooth, myWallbox app, Alexa/Google Assistant
• Cable Length: 25 ft.
• Dimensions: 7.8" x 7.9" x 3.9"
• Enclosure Rating: NEMA 4 (indoor/outdoor)
• Certifications: UL 2594, UL 2231, FCC Part 15 Class B
• Warranty: 3 years
