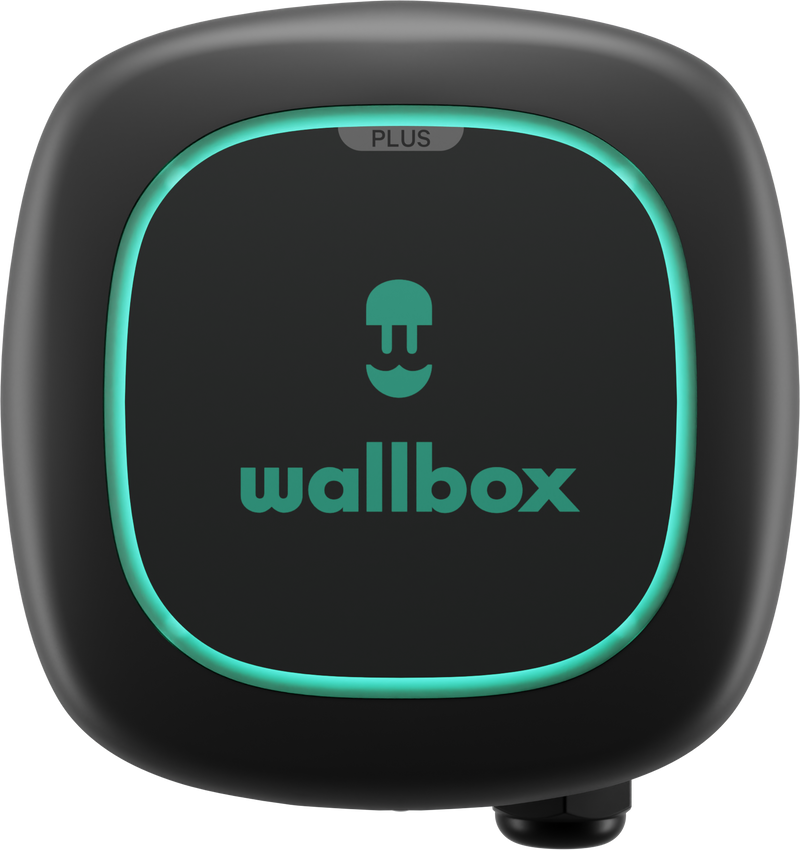

Wallbox Pulsar Plus 48A Residential Hardwired EV Charger

The Wallbox Pulsar Plus 48A delivers maximum home charging power in a sleek, compact design. Hardwired for a clean installation, it provides up to 11.5 kW of Level 2 charging—enough to fully recharge most EVs overnight with efficiency and speed.

Built for smart connectivity, the Pulsar Plus links to the myWallbox app via Wi-Fi or Bluetooth, letting you control charging sessions, monitor energy use, and set schedules directly from your phone. Alexa and Google Assistant compatibility make voice-activated charging possible, while EVmatch integration allows you to share your charger with the community using reservations, access control, and secure payment features.

Whether for personal use or as a shared charging station, the Pulsar Plus 48A combines high performance, smart control, and future-ready capability in one compact package.

Why Choose the Wallbox Pulsar Plus 48A?

• Maximum Power – Adjustable output up to 48A (11.5 kW) for fast Level 2 charging.
• Hardwired Installation – Clean, reliable setup for residential applications.
• Smart Control – Wi-Fi + Bluetooth app management with Alexa and Google Assistant support.
• Community Integration – EVmatch features enable reservations, payments, and group access.
• Compact & Durable – Matte black, weather-resistant NEMA 4 enclosure.
• Certified Safe – UL listed with 3-year warranty for long-term peace of mind.

Specifications

• Brand: Wallbox
• Model: Pulsar Plus 48A Residential Hardwired
• Connector Type: SAE J1772 (Type 1)

• Maximum Output: 48A | 11.5 kW
• Input Voltage: 240/208V AC | Hardwired only
• Adjustable Current: 6A–48A
• Connectivity: Wi-Fi, Bluetooth, myWallbox app, Alexa/Google Assistant
• Cable Length: 25 ft.
• Dimensions: 7.8" x 7.9" x 3.9"
• Enclosure Rating: NEMA 4 (indoor/outdoor)
• Certifications: UL 2594, UL 2231, FCC Part 15 Class B
• Warranty: 3 years
