Ozark Mountain Offgrid 10kW Solar Kit - Ground, 32.00kWh Omo 48V Freedom Series

Product Description

The 10KW Complete Offgrid Solar Kit is an ideal energy solution for cabins, small to mid-sized homes, or offgrid properties. Featuring an 11KW bifacial solar array and a 32kWh OMO 48V Freedom Series Lithium Battery, this system produces approximately 49,500 Watts per day based on 4.5 hours of sunlight. Designed for flexibility, it can operate without a battery, with the option to add a 48V battery at any time. Built for scalability, the system allows for future expansion with additional panels or batteries to meet growing energy needs.

Product Features

• High-Power Solar Array: 20x 550W Bifacial Mono Solar Panels (11KW) for consistent energy production
• Advanced Inverter: 1x Sol-Ark 15K Hybrid/Offgrid All-in-One Inverter with built-in MPPT charge controller

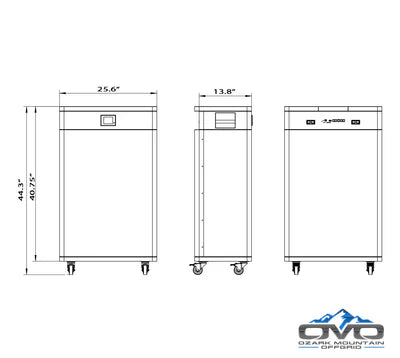

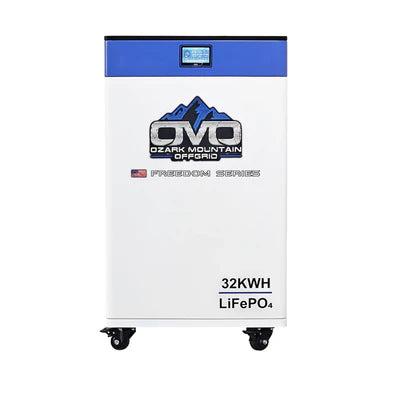

• Reliable Battery Backup: 32kWh OMO 48V Freedom Series Heated Battery with Bluetooth & LCD readout
• Ground Mount System: Complete Iron Ridge Rails, Top Caps, Rail Connectors, Fasteners, and Bolts – Aluminum
• Complete Wiring & Accessories: Solar combiner box, AC wiring, PV direct burial cabling, MC4 crimper, gutter box, and Anderson plug battery cable set
• Bifacial Panel Technology: Up to 25% more energy capture from the rear of panels for increased efficiency in low light conditions
• Weather Resistant: Panels rated for 5400 PA snow load and 2400 PA wind load
• Scalable & Expandable: Supports future panel and battery additions for growing energy needs
• Flexible Operation: Kit can run without a battery; compatible with 48V battery addition

Product Specifications

• System Size: 10KW
• Solar Panels: 20x 550W Bifacial Mono Panels
• Inverter: Sol-Ark 15K Hybrid/Offgrid
• Battery: 32kWh OMO 48V Freedom Series Lithium Battery
• Mounting Hardware: Iron Ridge Ground Mount Rails, Top Caps, Rail Connectors, Fasteners, Bolts
• Wiring & Accessories Included:
  • 1x Solar Combiner Box
  • 1x Anderson Plug Battery Cable Set
  • 1x Gutter Box
  • 1x 500' PV Direct Burial 10AWG Solar Wire
  • 1x 100' AC Output/Input/Generator Cabling – 6 AWG
  • 1x 20' AC Main Line – 4/0
  • 1x MC4 Crimp Kit
  • Installation Manual
• Panel Warranty: 30-Year Power Warranty
• Ground Mount Setup: Designed for 3" pipe (customer provides), all other hardware included
• Sol-Ark 15K Inverter Specs:
  • Output: 120/240V Split Phase
  • Operates With or Without Batteries
  • 48V Battery Backup Input (Flood Lead Acid or Lithium)
  • Grid Tie or Offgrid Compatible
  • Built-in MPPT Charge Controller – 3x MPPT Inputs
  • Generator Support
  • LCD Touch Screen & WiFi Connectivity
  • DC Transformerless, 97.5% Efficiency
  • NEMA 3R Rated for Outdoor Use
  • 10-Year Warranty
  • Parallel Stacking up to 8 Units
  • 4ms Transfer Time from Batteries to Grid Power
