Ozark Mountain 12KW Complete Offgrid Solar Kit - Ground Mount

Product Description

The 12KW Complete Offgrid Solar Kit is a robust energy solution for mid-sized homes and offgrid living. Featuring a 13.2KW bifacial solar array and a Sol-Ark 15K Hybrid/Offgrid All-in-One inverter, this system produces approximately 59,400 Watts per day based on 4.5 hours of sunlight. Designed for scalability, it can be expanded with additional solar panels or 48V batteries to meet growing energy needs. This kit can operate with or without a battery, providing flexibility for your offgrid setup.

Product Features

• High-Capacity Solar Array: 24x 550W Bifacial Mono Solar Panels (13.2KW) for consistent power generation

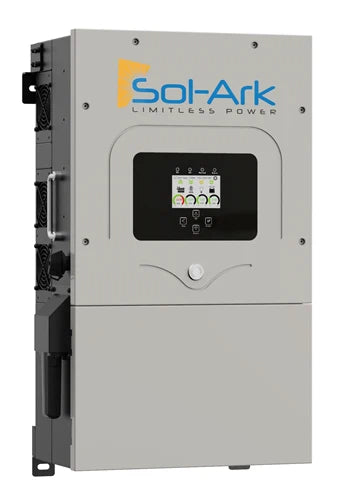

• Advanced Inverter: 1x Sol-Ark 15K Hybrid/Offgrid All-in-One Inverter with built-in MPPT charge controller
• Expandable Energy Storage: Compatible with optional 48V battery backup
• Ground Mount System: Complete Iron Ridge GROUND MOUNT rails, top caps, rail connectors, fasteners, and bolts (Aluminum)
• Complete Wiring & Accessories: Solar combiner box, AC and PV cabling, MC4 crimp kit, gutter box, and installation manual included
• Bifacial Panel Technology: Up to 25% more energy from the rear of panels for better performance in low light conditions
• Weather Resistant: Panels rated for 5400 PA snow load and 2400 PA wind load
• Scalable & Expandable: Designed for easy addition of future panels or batteries

Product Specifications

• System Size: 12KW
• Solar Panels: 24x 550W Bifacial Mono Panels
• Inverter: Sol-Ark 15K Hybrid/Offgrid
• Mounting Hardware: Iron Ridge Ground Mount Rails, Top Caps, Rail Connectors, Fasteners, Bolts
• Wiring & Accessories Included:
  • 1x Solar Combiner Box
  • 1x Gutter Box
  • 1x Spool 500' PV Direct Burial 10AWG Solar Wire
  • 1x Spool 100' AC Output/Input/Generator Cabling – 6 AWG
  • 1x Spool 20' AC Main Line – 4/0
  • 1x MC4 Crimp Kit
  • Installation Manual
• Panel Warranty: 30-Year Power Warranty
• Ground Mount Setup: Based on 3" Pipe (Customer provides pipe, kit includes all other hardware)
• Sol-Ark 15K Inverter Specs:
  • Output: 120/240V Split Phase
  • Operates with or without batteries
  • 48V Battery Backup Input (Flood Lead Acid or Lithium)
  • Grid Tie or Offgrid Compatible
  • Built-in MPPT Charge Controller – 3x MPPT Inputs
  • Generator Support
  • LCD Touch Screen & WiFi Connectivity
  • DC Transformerless, 97.5% Efficiency
  • NEMA 3R Rated for Outdoor Use
  • 10-Year Warranty
  • Parallel Stacking up to 8 units
  • 4ms Transfer Time from Batteries to Grid Power
