Ozark Mountain Offgrid 12kW Solar Kit - Ground, 32.00kWh Omo 48V Freedom Series

Product Description

The 12KW Complete Offgrid Solar Kit is a robust energy solution for mid-sized offgrid homes. With a 13.2KW bifacial solar array and a 32kWh OMO Freedom Series lithium battery, this system produces approximately 59,400 Watts per day based on 4.5 hours of sunlight. Designed for scalability, it allows for future expansion with additional panels or batteries to meet increasing energy needs.

Product Features

• High-Capacity Solar Array: 24x 550W Bifacial Mono Solar Panels (13.2KW)
• Advanced Inverter: 1x Sol-Ark 15K Hybrid/Offgrid All-in-One Inverter with built-in MPPT charge controller

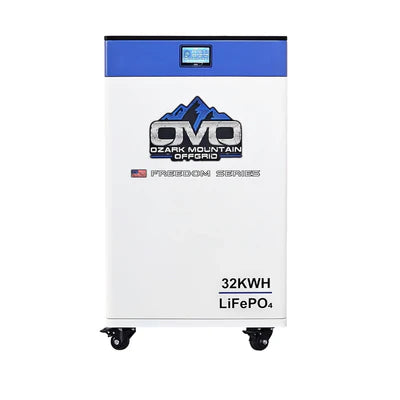

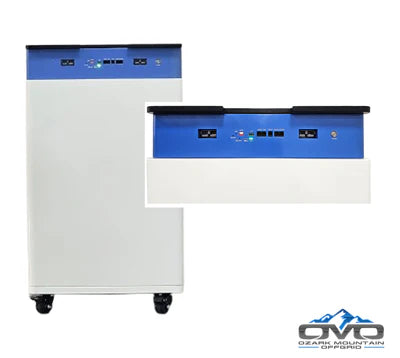

• Lithium Battery Backup: 32kWh OMO 48V Freedom Series Heated Battery with Bluetooth & LCD Readout
• Ground Mount System: Complete Iron Ridge rails, top caps, rail connectors, fasteners, and bolts (Aluminum)
• Complete Wiring & Accessories: Solar combiner box, AC wiring, PV direct burial cabling, MC4 crimper, gutter box, and Anderson plug battery cable set
• Bifacial Panel Technology: Up to 25% more energy from the rear of panels
• Weather Resistant: 5400 PA snow load and 2400 PA wind load
• Scalable & Expandable: Supports future panel and battery additions

Product Specifications

• System Size: 12KW
• Solar Panels: 24x 550W Bifacial Mono Panels
• Inverter: Sol-Ark 15K Hybrid/Offgrid
• Battery: 32kWh OMO 48V Freedom Series Lithium Battery
• Mounting Hardware: Iron Ridge Ground Mount Rails, Top Caps, Rail Connectors, Fasteners, Bolts
• Wiring & Accessories Included:
  • 1x Solar Combiner Box
  • 1x Anderson Plug Battery Cable Set
  • 1x Gutter Box
  • 1x 500' PV Direct Burial 10AWG Solar Wire
  • 1x 100' AC Output/Input/Generator Cabling – 6 AWG
  • 1x 20' AC Main Line – 4/0
  • 1x MC4 Crimp Kit
• Installation Manual: Included
• Panel Warranty: 30-year power warranty

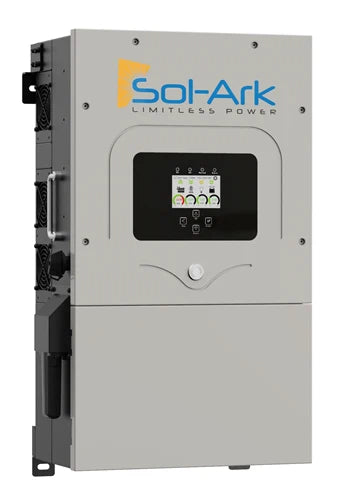

Sol-Ark 15K Inverter Specs

• Output: 120/240V Split Phase
• Works With or Without Batteries
• 48V Battery Backup Input (Flood Lead Acid or Lithium)
• Grid Tie or Offgrid Operation
• Built-in MPPT Charge Controller – 3x MPPT Inputs
• Generator Support
• LCD Touch Screen & WiFi Connectivity
• DC Transformerless, 97.5% Efficiency
• NEMA 3R Rated for Outdoor Use
• 10-Year Warranty
• Parallel Stacking Up to 8 Units
• 4ms Transfer Time from Batteries to Grid Power
