Ozark Mountain Offgrid 12kW Solar Kit - Ground, 9.60kWh Homegrid

Product Description

The 12KW Complete Offgrid Solar Kit is an ideal solution for mid-sized homes seeking energy independence. Featuring a 13.2KW bifacial solar array, a 15K Sol-Ark inverter, and a 9.6kWh HomeGrid 48V Stack’d Series lithium battery, this system produces approximately 59,400 Watts per day based on 4.5 hours of sunlight. Designed for flexibility, the battery is expandable up to 38.4kWh per Stack’d unit, and the system supports future additions of panels or batteries.

Product Features

• Solar Array: 24x 550W Bifacial Mono Solar Panels (13.2KW) for efficient energy capture
• Inverter: 1x Sol-Ark 15K Hybrid/Offgrid All-in-One Inverter with built-in MPPT charge controller

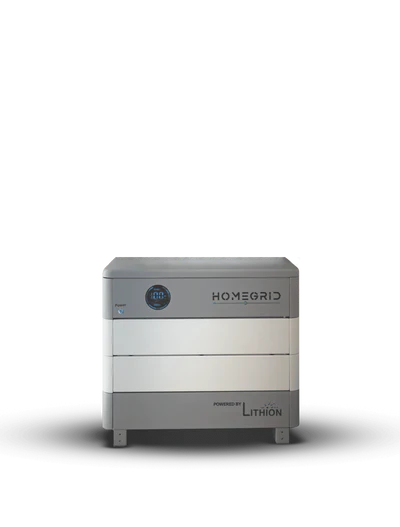

• Battery Backup: 1x 9.6kWh HomeGrid 48V Stack’d Series Lithium Battery (Expandable up to 38.4kWh per Stack’d Unit)
• Ground Mount System: Complete Iron Ridge rails, top caps, rail connectors, fasteners, and bolts (aluminum)
• Comprehensive Wiring & Accessories: Solar combiner box, Anderson plug battery cables, PV direct burial wire, AC cabling, MC4 crimp kit, gutter box, and installation manual
• Bifacial Panel Technology: Up to 25% additional energy harvesting from the rear of the panels
• Durable & Weather Resistant: 5400 PA snow load, 2400 PA wind load, 30-year power warranty
• Expandable & Scalable: Easily add more panels or batteries as your energy needs grow

Product Specifications

• System Size: 12KW
• Solar Panels: 24x 550W Bifacial Mono Panels (13.2KW)
• Inverter: Sol-Ark 15K Hybrid/Offgrid All-in-One
• Battery: 9.6kWh HomeGrid 48V Stack’d Series Lithium Battery (Expandable to 38.4kWh)
• Mounting Hardware: Iron Ridge Ground Mount Rails, Top Caps, Rail Connectors, Fasteners, Bolts
• Wiring & Accessories Included:
  • 1x Solar Combiner Box
  • 1x Anderson Plug Battery Cable Set
  • 1x Gutter Box
  • 1x 500' PV Direct Burial 10AWG Solar Wire
  • 1x 100' AC Output/Input/Generator Cabling – 6 AWG
  • 1x 20' AC Main Line – 4/0
  • 1x MC4 Crimp Kit
  • Installation Manual
• Ground Mount Pipe Requirement: 3" SCH 40 pipe sourced locally by customer

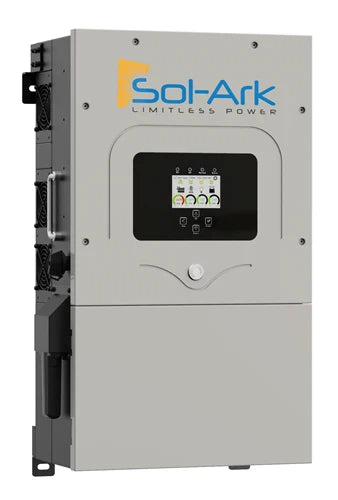

• Sol-Ark 15K Inverter Specs

• Output: 120/240V Split Phase
• Can operate with or without batteries
• 48V Battery Backup Input (Flood Lead Acid or Lithium)
• Grid Tie or Offgrid Operation
• Built-in MPPT Charge Controller – 3x MPPT Inputs
• Generator Support
• LCD Touch Screen & WiFi Connectivity
• DC Transformerless, 97.5% Efficiency
• NEMA 3R Rated for Outdoor Use
• 10-Year Warranty
• Parallel Stacking up to 8 units
• 4ms Transfer time from Batteries to Grid Power
