Ozark Mountain Offgrid 12kW Solar Kit - Rails, 9.60kWh

Product Description

12KW Complete Offgrid Solar Kit designed for mid-sized homes or offgrid properties seeking reliable, year-round power. This kit includes a 15K Sol-Ark inverter, a 9.6kWh HomeGrid lithium battery (expandable up to 38.4kWh), and a 13.2kW bifacial solar array, producing up to 59,400 watts per day based on 4.5 hours of sunlight. All necessary wiring, combiner boxes, and mounting rails are included, with a scalable design that allows for future expansion of panels or batteries.

Product Features

• PV Array: 13.2kW of high-output bifacial mono solar panels
• Inverter: Sol-Ark 15K hybrid/offgrid inverter with built-in MPPT charge controller
• Battery Storage: 9.6kWh HomeGrid 48V Stack’d lithium battery, expandable up to 38.4kWh
• Wiring & Accessories: Combiner box, AC and PV cabling, MC4 crimper kit, wire gutter box, installation manual, and battery cable set
• Durable Panels: Bi-facial double glass design enables up to 25% more energy capture in low-light conditions
• Weather Resistant: Panels rated for 5400 Pa snow load and 2400 Pa wind load with 30-year power warranty
• Scalable Design: Supports additional panels or batteries for future expansion

Product Specifications

• System Size: 12kW
• Array DC Rating: 13.2kW (24x 550W bifacial mono panels)

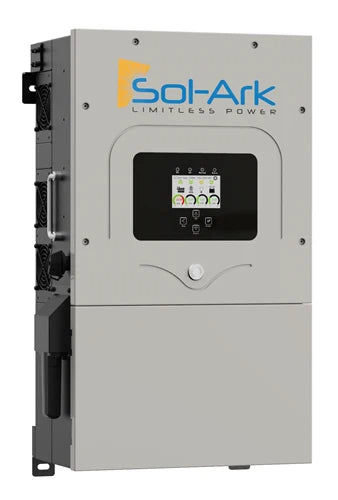

• Inverter: Sol-Ark 15K 48V hybrid/offgrid inverter

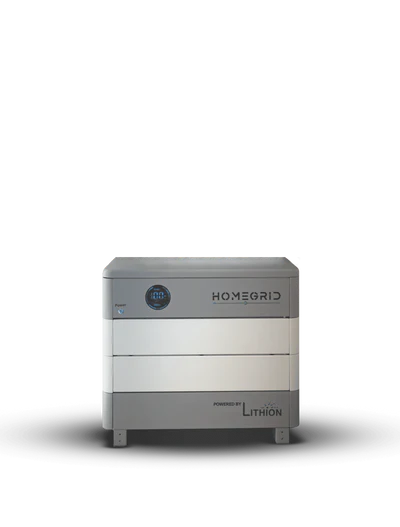

• Battery Bank: 9.6kWh HomeGrid 48V Stack’d lithium battery (expandable to 38.4kWh per unit)
• Included Components: Mounting rails, splices, legs, fasteners, 1x solar combiner box, AC & PV cabling (500’ PV, 100’ AC, 20’ 4/0 main line), MC4 crimper kit, wire gutter box, Anderson plug battery cable set, installation manual
• Inverter Features: 120/240V split phase output, compatible with or without batteries, 3x MPPT inputs, generator support, LCD touchscreen, WiFi connectivity, DC transformerless, 97.5% efficiency, NEMA 3R rated, 10-year warranty
• Parallel Capability: Stack up to 8 units
• Transfer Time: 4ms from batteries to grid power
