Ozark Mountain Offgrid 2.2KW Boat Dock Offgrid Solar Kit

Product Description

The 2.2KW Boat Dock Offgrid Solar Kit is the ultimate plug-and-play solution for powering your dock without relying on shore power. Whether new regulations restrict shoreline electricity access or you’re simply looking to cut utility costs, this system provides reliable off-grid energy with 4x bifacial solar panels, 2x lithium batteries, and a 5KW inverter/charger.

With 11.8kWh of battery storage and a 2.2KW solar array, this system generates approximately 9,900Wh per day (based on 4.5 sun hours), supporting docks that use around 230 kWh per month. Pre-wired and mounted inside a weather-resistant lockable box, installation is simple, secure, and expandable for future power needs.

Product Features

• High-Efficiency Solar Panels – 4x 550W bifacial double-glass panels harvest sunlight from both sides, producing up to 25% more energy.
• Lithium Battery Bank – 2x 5.9kWh BatteryEVO 24V lithium batteries (11.8kWh total), designed for solar use with deep-cycle reliability.
• Powerful Inverter/Charger – 5000W pure sine inverter with 120V output, 10,000W surge capacity, and integrated charger. Supports grid-tie UPS functionality or generator input.

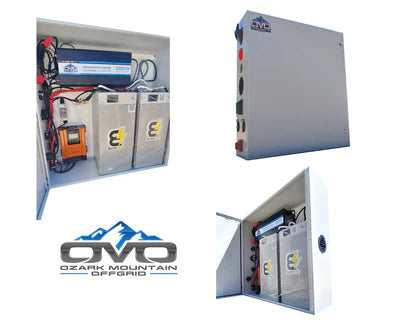

• Pre-Wired Plug-and-Play System – Housed in a mountable, weather-resistant lockable box with all components pre-installed.
• Comprehensive Protection – Includes 60A MPPT charge controller, solar combiner box, master ON/OFF switch, and waterproof exterior plugs.
• Smart Monitoring – Exterior LCD battery/volt/amp display for real-time performance tracking.
• Durable & Long-Lasting – Panels rated for 5400 Pa snow load / 2400 Pa wind load, with a 30-year power warranty.
• Expandable Design – Ready for additional solar panels or batteries as energy needs increase.

Product Specifications

• Solar Array: 4x 550W bifacial panels (2.2KW total)
• Daily Output: ~9,900Wh/day (4.5 peak sun hours)
• Battery Bank: 2x 5.9kWh BatteryEVO 24V lithium batteries (11.8kWh total)
• Inverter/Charger: 5000W pure sine inverter, 120V output, 10,000W surge, built-in charger
• Charge Controller: 60A MPPT
• Mounting System: IronRidge roof mount rails, splices, hardware included
• Enclosure: Weather-resistant lockable box (36"H x 36"W x 12"D)
• Panel Ratings: 5400 Pa snow load / 2400 Pa wind load
• Warranty: 30-year solar panel warranty, 10-year battery warranty
