Ozark Mountain Offgrid 20kW Solar Kit - Ground, 3×32kWh Omo 48V Freedom Series

Product Description

The 20KW Complete Offgrid Solar Kit – Ground Mount is ideal for larger homes or offgrid properties. This kit features 36x 550W bifacial mono solar panels, 2x Sol-Ark 15K hybrid inverters, and 3x 32kWh OMO 48V Freedom Series lithium batteries, producing approximately 89,100W per day based on 4.5 peak sun hours.

Designed for households with high energy consumption of around 2,670 kWh per month, this system is fully scalable, allowing for the addition of more panels or batteries as your energy requirements grow.

Product Features

• High-Efficiency Bifacial Panels: 36x 550W double-glass panels harvest sunlight from both sides, increasing energy output by up to 25%, even in cloudy or low-light conditions.

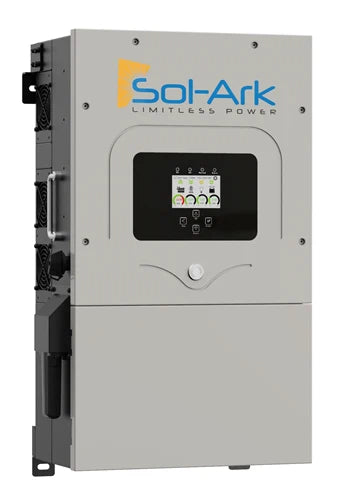

• Sol-Ark 15K Hybrid Inverters: 2 inverters with built-in MPPT charge controller, WiFi monitoring, LCD touchscreen, generator support, and 97.5% efficiency. Can operate with or without battery backup.

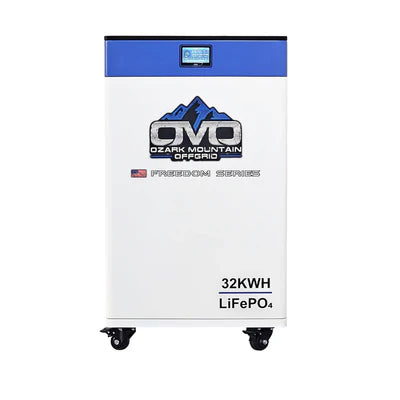

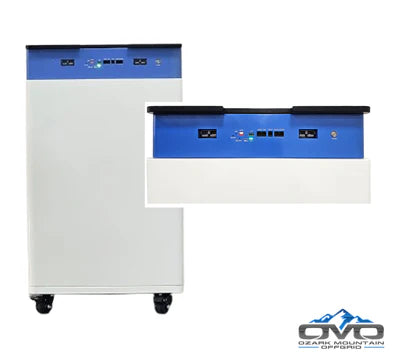

• Lithium Battery Storage: 3x 32kWh OMO 48V Freedom Series heated batteries with Bluetooth and LCD readout, providing 96kWh of total usable energy.
• Complete Ground Mount System: Includes IronRidge rails, top caps, connectors, fasteners, and bolts for secure installation. Customer supplies 3" sch 40 pipe locally.
• Comprehensive Wiring Package: Includes solar combiner boxes, AC combiner box kit, Anderson plug battery cables, PV direct burial wires, AC wiring, gutter boxes, MC4 crimp kit, and installation manual.
• Durable & Weather-Resistant: Panels rated for 5400 Pa snow load / 2400 Pa wind load with a 30-year power warranty.
• Scalable & Flexible: Easily expandable with additional panels or batteries for future energy needs.

Product Specifications

• Solar Array: 36x 550W bifacial mono panels (19.8KW total output)
• Daily Output: ~89,100W per day (4.5 peak sun hours)
• Inverters: 2x Sol-Ark 15K hybrid/off-grid, 48V, 120/240V split-phase
• Battery Bank: 3x 32kWh OMO 48V Freedom Series lithium batteries (96kWh total)
• Mounting System: IronRidge ground mount rails, top caps, connectors, fasteners
• Panel Ratings: 5400 Pa snow load / 2400 Pa wind load
• Inverter Efficiency: 97.5%
• Connectivity: WiFi monitoring, LCD touchscreen, generator support
