Ozark Mountain Offgrid 25kW Solar Kit - Rails, 32.00kWh Omo 48V Freedom Series

Product Description

The 25KW Complete Offgrid Solar Kit is a high-capacity energy solution designed for large homes or offgrid properties. Featuring a 26.4KW bifacial solar array paired with two 15K Sol-Ark inverters and a 32kWh OMO 48V Freedom Series lithium battery, this system can produce approximately 118,800 Watts per day based on 4.5 hours of sunlight. Built for scalability, the kit supports future expansion with additional panels or batteries to meet growing energy needs.

Product Features

• High-Capacity Solar Array: 48x 550W Bifacial Mono Solar Panels (26.4KW) for maximum energy production
• Dual Inverter Setup: 2x Sol-Ark 15K Hybrid/Offgrid All-in-One Inverters with built-in MPPT charge controllers

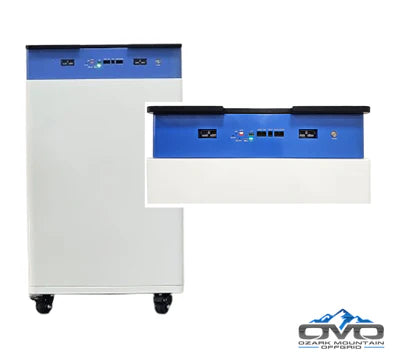

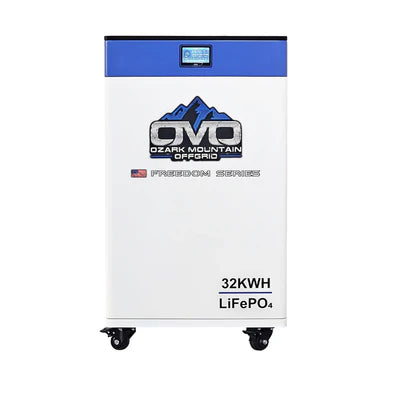

• Lithium Battery Backup: 32kWh OMO 48V Freedom Series Heated Battery with Bluetooth & LCD Readout
• Durable Mounting System: Complete Iron Ridge rails, splices, L-feet, fasteners, and bolts
• Comprehensive Wiring & Accessories: 2x Solar combiner boxes, AC combiner box kit, Anderson plug battery cables, PV direct burial wire, AC cabling, MC4 crimp kit, gutter boxes, and installation manual
• Bifacial Panel Technology: Up to 25% more energy harvesting from the rear of panels
• Weather Resistant: Panels rated for 5400 PA snow load and 2400 PA wind load
• Expandable Design: Supports future additions of panels or batteries

Product Specifications

• System Size: 25KW
• Solar Panels: 48x 550W Bifacial Mono Panels (26.4KW)
• Inverters: 2x Sol-Ark 15K Hybrid/Offgrid
• Battery: 32kWh OMO 48V Freedom Series Lithium Battery
• Mounting Hardware: Iron Ridge rails, splices, L-feet, fasteners, bolts
• Wiring & Accessories Included:
  • 2x Solar Combiner Boxes
  • 1x AC Combiner Box Kit
  • 1x Anderson Plug Battery Cable Set
  • 2x Gutter Boxes
  • 1x 500' PV Direct Burial 10AWG Solar Wire
  • 1x 100' AC Output/Input/Generator Cabling – 6 AWG
  • 1x 20' AC Main Line – 4/0
  • 1x MC4 Crimp Kit
  • Installation Manual
• Panel Warranty: 30-year power warranty
• Sol-Ark 15K Inverter Specs:
  • Output: 120/240V Split Phase
  • Works With or Without Batteries
  • 48V Battery Backup Input (Flood Lead Acid or Lithium)
  • Grid Tie or Offgrid Operation
  • Built-in MPPT Charge Controller – 3x MPPT Inputs
  • Generator Support
  • LCD Touch Screen & WiFi Connectivity
  • DC Transformerless, 97.5% Efficiency
  • NEMA 3R Rated for Outdoor Use
  • 10-Year Warranty
  • Parallel Stacking up to 8 units
  • 4ms Transfer Time from Batteries to Grid Power
