Ozark Mountain Offgrid 25kW Solar Kit - Ground, 9.60kWh

Product Description

The 25KW Complete Offgrid Solar Kit is a reliable, high-performance energy solution designed for larger offgrid homes and properties. With a 26.4KW bifacial solar array and a 9.6kWh HomeGrid lithium battery, this system produces around 118,800 Watts per day based on 4.5 hours of sunlight. Engineered for flexibility, it can be scaled up with additional solar panels or batteries to meet growing energy demands.

Product Features

• High-Capacity Solar Array: 48x 550W Bifacial Mono Solar Panels (26.4KW)

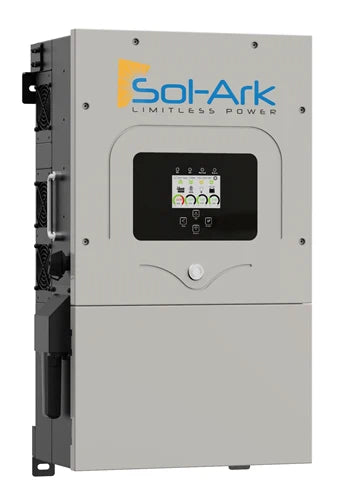

• Advanced Inverters: 2x Sol-Ark 15K Hybrid/Offgrid All-in-One Inverters with built-in MPPT charge controllers

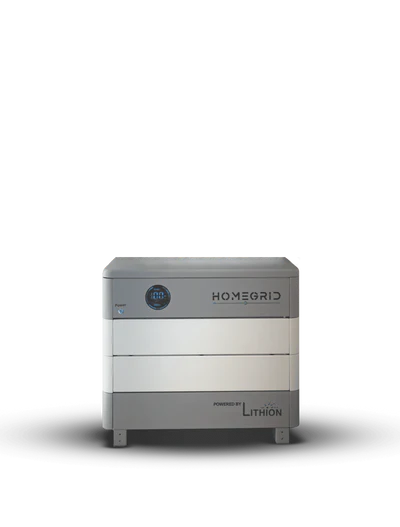

• Lithium Battery Backup: 9.6kWh HomeGrid 48V Stack’d Series Battery (Expandable up to 38.4kWh per unit)
• Ground Mount System: Complete Iron Ridge rails, top caps, rail connectors, fasteners, and bolts included
• Complete Wiring & Accessories: AC combiner boxes, PV direct burial cabling, MC4 crimper, and wire gutter boxes
• Bifacial Panel Technology: Up to 25% additional energy harvesting from the rear of panels
• Weather Resistant: Rated for 5400 PA snow load and 2400 PA wind load
• Scalable & Expandable: Supports future panel and battery additions

Product Specifications

• System Size: 25KW
• Solar Panels: 48x 550W Bifacial Mono Panels
• Inverters: 2x Sol-Ark 15K Hybrid/Offgrid Inverters
• Battery: 9.6kWh HomeGrid 48V Stack’d Lithium Battery
• Mounting Hardware: Iron Ridge Ground Mount Rails, Top Caps, Rail Connectors, Fasteners, Bolts
• Wiring & Accessories Included:
  • 2x Solar PV Combiner Boxes
  • 1x Anderson Plug Battery Cable Set
  • 2x Gutter Boxes
  • 1x 500' PV Direct Burial 10AWG Solar Wire
  • 1x 100' AC Output/Input/Generator Cabling – 6 AWG
  • 1x 20' AC Main Line – 4/0
  • 1x MC4 Crimp Kit
• Installation Manual: Included
• Panel Warranty: 30-year power warranty
