Ozark Mountain Offgrid 30kW Solar Kit - Roof, 2×32kWh Omo 48V Freedom Series

Product Description

The 30KW Complete Offgrid Solar Kit is a high-capacity energy solution for large homes, farms, or offgrid properties. Featuring a 30.8KW bifacial solar array, two Sol-Ark 15K Hybrid/Offgrid Inverters, and a 64kWh OMO 48V Freedom Series lithium battery bank, this system produces approximately 138,600 Watts per day based on 4.5 hours of sunlight. Designed for scalability, it allows for future expansion with additional panels or batteries to meet increasing energy demands.

Product Features

• High-Power Solar Array: 56x 550W Bifacial Mono Solar Panels (30.8KW) for reliable, consistent energy production
• Dual Advanced Inverters: 2x Sol-Ark 15K Hybrid/Offgrid All-in-One Inverters with built-in MPPT charge controllers

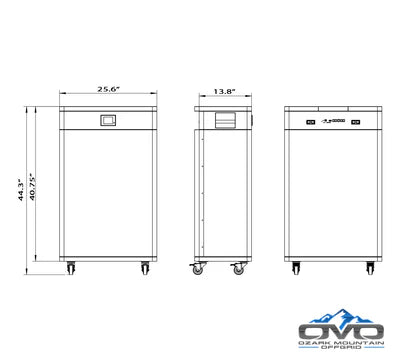

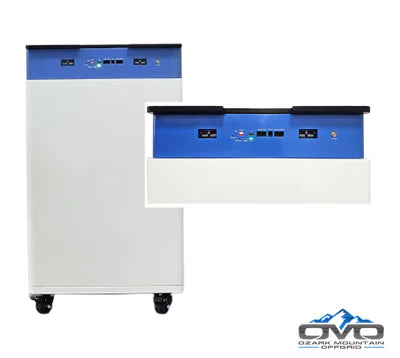

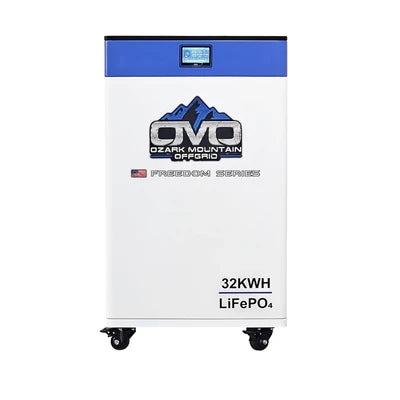

• Expandable Battery Storage: 2x 32kWh OMO 48V Freedom Series Heated Batteries with Bluetooth & LCD readout (64kWh total storage)
• Roof Mount System: Complete Iron Ridge Roof Mount Rails, Splices, L-Feet, Fasteners, and Bolts
• Comprehensive Wiring & Accessories: PV combiner boxes, AC wiring, MC4 crimp kit, gutter boxes, Anderson plug battery cables, and installation manual included
• Bifacial Panel Technology: Up to 25% additional energy capture from the rear of panels, improving output in low light conditions
• Weather Resistant: Panels rated for 5400 PA snow load and 2400 PA wind load
• Scalable & Expandable: Supports additional panels and batteries for future energy needs

Product Specifications

• System Size: 30KW
• Solar Panels: 56x 550W Bifacial Mono Panels
• Inverters: 2x Sol-Ark 15K Hybrid/Offgrid
• Battery Bank: 2x 32kWh OMO 48V Freedom Series Lithium Battery (64kWh total)
• Mounting Hardware: Iron Ridge Roof Mount Rails, Splices, L-Feet, Fasteners, Bolts
• Wiring & Accessories Included:
  • 2x Solar PV Combiner Boxes
  • 2x Wire Gutter Boxes
  • 1x 500' Spool 10AWG MC4 Solar Array Cabling
  • 1x MC4 Crimper Tool Set
  • 1x Spool 100' AC Output/Input/Generator Cabling – 6 AWG
  • 1x 20' AC Main Line – 2/0
  • 1x AC Combiner Box Kit for multiple Sol-Ark units
  • 2x Anderson Plug Battery Cable Sets
  • Installation Manual
• Panel Warranty: 30-Year Power Warranty
• Sol-Ark 15K Inverter Specs:
  • Output: 120/240V Split Phase
  • Operates With or Without Batteries
  • 48V Battery Backup Input (Flood Lead Acid or Lithium)
  • Grid Tie or Offgrid Compatible
  • Built-in MPPT Charge Controller – 3x MPPT Inputs
  • Generator Support
  • LCD Touch Screen & WiFi Connectivity
  • DC Transformerless, 97.5% Efficiency
  • NEMA 3R Rated for Outdoor Use
  • 10-Year Warranty
  • Parallel Stacking up to 8 Units
  • 4ms Transfer Time from Batteries to Grid Power
