Ozark Mountain 30KW Complete Solar Kit with Mounting Rails and Wiring

Product Description

The 30KW Complete Offgrid Solar Kit is a premium energy solution for large homes, farms, or offgrid properties. Featuring a 30.8KW bifacial solar array and dual Sol-Ark 15K Hybrid/Offgrid Inverters, this system produces approximately 138,600 Watts per day based on 4.5 hours of sunlight. Designed for flexibility, the system can operate without a battery and supports the addition of a 48V battery at any time. Built for scalability, it allows for future expansion with extra panels or batteries to meet growing energy needs.

Product Features

• High-Power Solar Array: 56x 550W Bifacial Mono Solar Panels (30.8KW) for reliable energy production
• Dual Advanced Inverters: 2x Sol-Ark 15K Hybrid/Offgrid All-in-One Inverters with built-in MPPT charge controllers
• Flexible Battery Integration: Can run without batteries; compatible with 48V battery addition at any time
• Roof Mount System: Complete Iron Ridge Mounting Rails, Splices, Legs, Fasteners, and Bolts – Mill Finish
• Complete Wiring & Accessories: PV combiner boxes, AC combiner kit, AC wiring, MC4 crimp tool, gutter boxes, and installation manual included
• Bifacial Panel Technology: Up to 25% more energy capture from the rear of panels, boosting performance in low light conditions
• Weather Resistant: Panels rated for 5400 PA snow load and 2400 PA wind load
• Scalable & Expandable: Supports future panel and battery additions for growing energy needs
• Installation Option: Available upon request for custom pricing

Product Specifications

• System Size: 30KW
• Solar Panels: 56x 550W Bifacial Mono Panels
• Inverters: 2x Sol-Ark 15K Hybrid/Offgrid
• Mounting Hardware: Iron Ridge Roof Mount Rails, Splices, Legs, Fasteners, Bolts (Mill Finish)
• Wiring & Accessories Included:
  • 2x Solar PV Combiner Boxes
  • 2x Wire Gutter Boxes
  • 1x 500' Spool 10AWG MC4 Solar Array Cabling
  • 1x MC4 Crimper Tool Set
  • 1x Spool 100' AC Output/Input/Generator Cabling – 6 AWG
  • 1x 20' Spool 2/0 AC Main Line

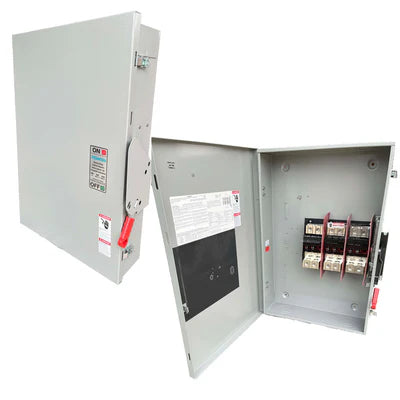

  • 1x AC Combiner Box Kit (for 2+ Sol-Ark units)
  • Installation Manual
• Panel Warranty: 30-Year Power Warranty
• Sol-Ark 15K Inverter Specs:
  • Output: 120/240V Split Phase
  • Operates With or Without Batteries
  • 48V Battery Backup Input (Flood Lead Acid or Lithium)
  • Grid Tie or Offgrid Compatible
  • Built-in MPPT Charge Controller – 3x MPPT Inputs
  • Generator Support
  • LCD Touch Screen & WiFi Connectivity
  • DC Transformerless, 97.5% Efficiency
  • NEMA 3R Rated for Outdoor Use
  • 10-Year Warranty
  • Parallel Stacking up to 8 Units
  • 4ms Transfer Time from Batteries to Grid Power
