Ozark Mountain Offgrid 30kW Solar Kit - Ground, 32.00kWh Omo 48V Freedom Series

Product Description

The 30KW Complete Offgrid Solar Kit is an ideal solution for large homes, farms, or off-grid living. Featuring a 30.8KW bifacial solar array, 2x 15K Sol-Ark inverters, and a 32kWh OMO 48V Freedom Series lithium battery, this system produces approximately 138,600 Watts per day based on 4.5 hours of sunlight. The lithium battery provides reliable energy storage and the kit is designed for easy future expansion with additional panels or batteries. Built for durability and efficiency, this package supports all your essential power needs with scalable off-grid energy solutions.

Product Features

• Solar Array: 56x 550W Bifacial Mono Panels (30.8KW) for maximum energy capture
• Inverters: 2x Sol-Ark 15K Hybrid/Offgrid All-in-One with built-in MPPT charge controllers

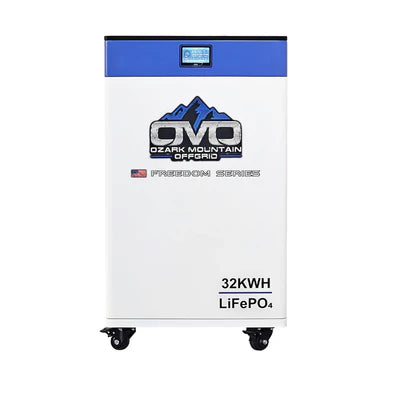

• Battery Backup: 1x 32kWh OMO 48V Freedom Series Heated Lithium Battery with Bluetooth and LCD display
• Ground Mount System: Complete Iron Ridge rails, top caps, rail connectors, fasteners, and bolts
• Comprehensive Wiring & Accessories: 2x solar PV combiner boxes, 1x AC combiner kit, Anderson plug battery cables, PV array cabling, MC4 crimper tool set, AC cabling, wire gutter boxes, and installation manual
• Bifacial Panel Technology: Additional energy harvesting from the rear of the panels (up to 25%) for increased efficiency in low-light conditions
• Durable & Weather Resistant: 5400 PA snow load, 2400 PA wind load, 30-year power warranty
• Expandable & Scalable: Designed for adding more panels or batteries as energy needs grow

Product Specifications

• System Size: 30KW
• Solar Panels: 56x 550W Bifacial Mono Panels (30.8KW)
• Inverters: 2x Sol-Ark 15K Hybrid/Offgrid All-in-One
• Battery: 32kWh OMO 48V Freedom Series Lithium Battery
• Mounting Hardware: Iron Ridge Ground Mount Rails, Top Caps, Rail Connectors, Fasteners, Bolts
• Wiring & Accessories Included:
• 2x Solar PV Combiner Box
• 1x AC Combiner Box Kit
• 1x 500' Spool 10AWG MC4 Solar Array Cabling
• 1x MC4 Crimper Tool Set
• 1x 100' AC Output/Input/Generator Cabling – 6 AWG
• 1x 20' AC Main Line – 2/0
• 2x Wire Gutter Boxes
• Installation Manual
• Sol-Ark 15K Inverter Specs:
• Output: 120/240V Split Phase
• Can operate with or without batteries
• 48V Battery Backup Input (Flood Lead Acid or Lithium)
• Grid Tie or Offgrid Operation
• Built-in MPPT Charge Controller – 3x MPPT Inputs
• Generator Support
• LCD Touch Screen & WiFi Connectivity
• DC Transformerless, 97.5% Efficiency
• NEMA 3R Rated for Outdoor Use
• 10-Year Warranty
• Parallel Stacking up to 8 units
• 4ms Transfer time from Batteries to Grid Power
