Ozark Mountain Offgrid 30kW Solar Kit - Ground, 3×32kWh Omo 48V Freedom Series

Product Description

30KW Complete Offgrid Solar Kit designed for large homes, farms, or offgrid properties requiring reliable, high-capacity power. This kit includes two 15K Sol-Ark inverters, a 96kWh lithium battery bank, and a 30.8kW bifacial solar array, producing up to 138,600 watts per day based on 4.5 hours of sunlight. The system can be scaled for additional panels or batteries, and all necessary wiring, combiner boxes, and ground-mount rails are included for a streamlined installation.

Product Features

• PV Array: 30.8kW of high-output bifacial mono solar panels

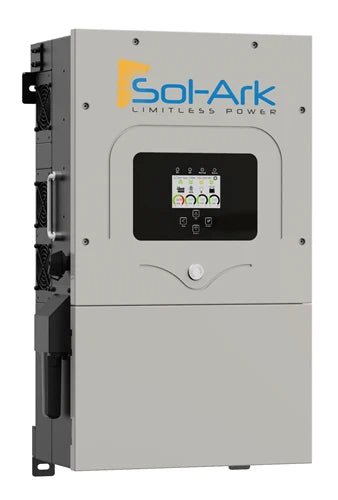

• Inverters: 2x Sol-Ark 15K hybrid/offgrid inverters with built-in MPPT charge controllers

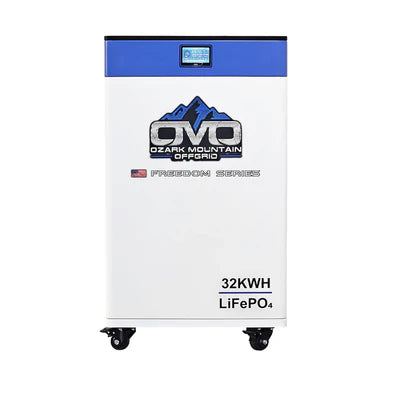

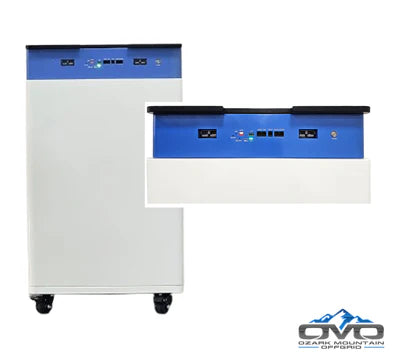

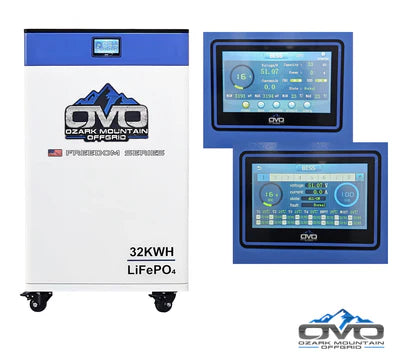

• Battery Storage: 3x OMO 32kWh 48V Freedom Series lithium batteries with Bluetooth and LCD readout
• Wiring & Accessories: Includes combiner boxes, AC and PV cabling, MC4 crimper kit, wire gutter boxes, AC combiner kit, and installation manual
• Durable Panels: Bi-facial double glass design enables up to 25% more energy capture in low-light conditions
• Weather Resistant: Panels rated for 5400 Pa snow load and 2400 Pa wind load with 30-year power warranty
• Scalable Design: Supports future expansion of panels or batteries

Product Specifications

• System Size: 30kW
• Array DC Rating: 30.8kW (56x 550W bifacial mono panels)
• Inverters: 2x Sol-Ark 15K 48V hybrid/offgrid inverters
• Battery Bank: 96kWh total storage (3x 32kWh 48V lithium batteries)
• Included Components: Ground-mount rails, top caps, rail connectors, fasteners, 2x PV combiner boxes, 1x AC combiner box kit, cabling (500’ PV, 100’ AC, 20’ 2/0 main line), MC4 crimper kit, wire gutter boxes, installation manual
• Inverter Features: 120/240V split phase output, compatible with or without batteries, 3x MPPT inputs, generator support, LCD touchscreen, WiFi connectivity, DC transformerless, 97.5% efficiency, NEMA 3R rated, 10-year warranty
• Parallel Capability: Stack up to 8 units
• Transfer Time: 4ms from batteries to grid power
