Ozark Mountain Offgrid 35kW Solar Kit - Ground, 2×32kWh Omo 48V Freedom Series

Product Description

35KW Complete Offgrid Solar Kit designed for reliable, year-round power for large homes, farms, or offgrid properties. This system delivers approximately 158,400 Watts per day based on 4.5 hours of sunlight and is scalable for future panel or battery additions. The kit includes a robust 64KW lithium battery bank for extended energy storage, high-output bifacial solar panels, and Sol-Ark inverters with built-in MPPT charge controllers for efficient energy management. Ground mount rails and complete wiring accessories ensure a seamless installation.

Product Features

• PV Array: 35.2KW of high-output bifacial mono solar panels
• Inverters: 2x Sol-Ark 15K Hybrid/Offgrid All-in-One Inverters with MPPT charge controllers

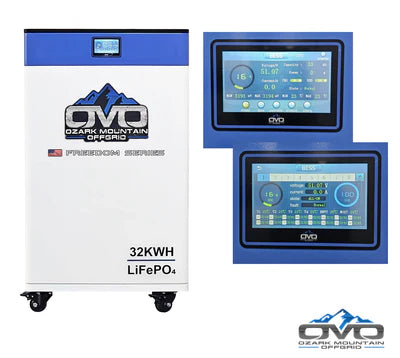

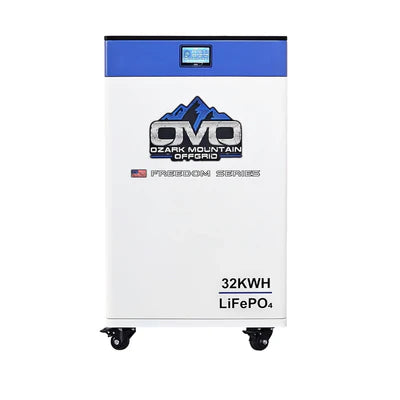

• Battery Storage: 2x OMO 32KW 48V Freedom Series Lithium Batteries with Bluetooth and LCD readout (64KW total)
• Ground Mount System: Complete Iron Ridge rails, top caps, rail connectors, fasteners, and bolts
• Wiring & Accessories: Includes PV cabling, AC wiring, combiner boxes, MC4 crimper set, and battery cables
• High Durability: Panels with double glass, 5400 PA snow load, 2400 PA wind load, 30-year power warranty
• Expandable Design: Supports future addition of panels, batteries, or parallel stacking of up to 8 inverters

Product Specifications

• System Size: 35KW
• Array DC Rating: 35.2KW
• Solar Panels: 64x 550W bifacial mono panels
• Inverters: 2x Sol-Ark 15K 48V (built-in 3x MPPT charge controllers)
• Battery Bank: 2x 32KW OMO 48V Freedom Series Lithium Batteries (64KW total)
• Ground Mount: 3" Schedule 40 pipe setup (customer to source pipe locally)
• Included Components:
  • 2x Solar PV Combiner Boxes
  • 1x AC Combiner Box Kit
  • 1x 500' 10AWG MC4 PV cabling
  • 1x 100' AC Output/Input/Generator cabling – 6 AWG
  • 1x 20' AC Main Line – 2/0
  • 2x Wire Gutter Boxes
  • 2x Anderson Plug Battery Cable Sets
  • 1x MC4 Crimper Tool Set
  • 1x Installation Manual
• Inverter Features:
  • 120/240V split-phase output
  • Grid-tie or offgrid capable
  • Battery optional (48V lead-acid or lithium)
  • LCD touch screen, WiFi connectivity, DC transformerless
  • 97.5% efficiency, NEMA 3R outdoor rated
  • 4ms transfer time from batteries to grid power
  • 10-year warranty
