Ozark Mountain Offgrid 35kW Solar Kit - Rails

Product Description

35KW Complete Offgrid Solar Kit delivers reliable, high-output energy for large homes, farms, or offgrid applications. This robust solar system produces approximately 158,400 Watts per day (based on 4.5 hours of sunlight) and can be expanded with additional panels or batteries. The kit operates without a battery attached, but a 48V battery can be added anytime for backup power. Built for long-term performance, it includes bifacial solar panels, high-efficiency Sol-Ark inverters, and durable mounting hardware.

Product Features

• High-Output PV Array: 64x 550W Bifacial Mono Solar Panels (35.2KW) for maximum energy harvesting
• Flexible Inverter System: 2x Sol-Ark Hybrid/Offgrid 15K Inverters with built-in MPPT Charge Controller
• Expandable Design: Supports future additions of panels or batteries
• Durable Mounting: Iron Ridge Mounting Rails, Splices, Legs, Fasteners, and Bolts – Mill Finish
• Complete Wiring & Accessories: Includes combiner boxes, MC4 cabling, crimper tool set, AC wiring, and gutter boxes
• Advanced Solar Panel Technology: Bifacial panels with double glass, up to 25% more energy harvesting from rear side
• Weather Resistant: 5400 PA Snow Load, 2400 PA Wind Load, designed for harsh environments
• Optional Installation: Custom installation pricing available

Product Specifications

• System Size: 35.2KW
• Panels: 64x 550W Bifacial Mono Solar Panels
• Inverters: 2x Sol-Ark 15K Hybrid/Offgrid Inverters
• Mounting Hardware: Iron Ridge Rails / Splices / Legs / Fasteners / Bolts – Mill Finish
• Wiring & Accessories Included:
  • 2x Solar PV Combiner Boxes

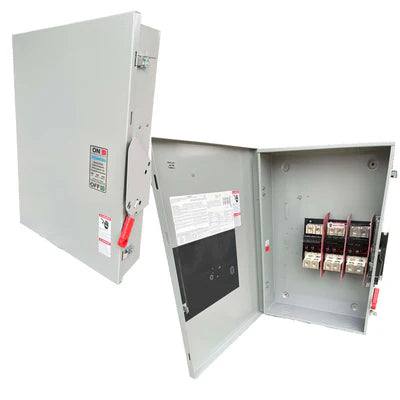

  • 1x AC Combiner Box Kit
  • 1x 500' Spool 10AWG MC4 Solar Array Cabling
  • 1x MC4 Crimper Tool Set
  • 1x 100' AC Output / Input / Generator Cabling – 6 AWG
  • 1x 20' 2/0 AC Main Line
  • 2x Wire Gutter Boxes
• Installation Manual: Included
• Panel Warranty: 30-year power warranty
• Inverter Specs:
  • 120/240V Split Phase Output
  • Works With or Without Batteries
  • 48V Battery Backup Input (Flood Lead Acid or Lithium)
  • Grid Tie or Offgrid Operation
  • Built-in MPPT Charge Controller – 3x MPPT Inputs
  • Generator Support
  • LCD Touch Screen & WiFi Connectivity
  • DC Transformerless, 97.5% Efficiency
  • NEMA 3R Rated for Outdoor Use
  • 10-Year Warranty
  • Parallel Stacking Up to 8 Units
  • 4ms Transfer Time from Batteries to Grid Power
