Ozark Mountain 6KW Complete Offgrid Solar Kit with Mounting Rails and Wiring

Product Description

The 6KW Complete Offgrid Solar Kit is a reliable and scalable energy solution for cabins, small homes, or offgrid living. Featuring a 6.6KW bifacial solar array paired with the 15K Sol-Ark inverter, this system can produce approximately 29,700 Watts per day based on 4.5 hours of sunlight. Designed for flexibility, the kit can run without a battery and allows you to add a 48V battery at any time, making it perfect for future expansions.

Product Features

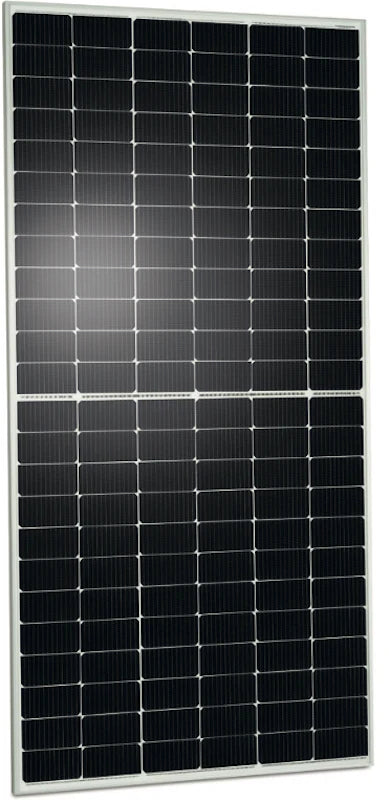

• High-Efficiency Solar Array: 12x 550W Bifacial Mono Solar Panels (6.6KW) for maximum energy production
• Advanced Inverter: Sol-Ark 15K Hybrid/Offgrid All-in-One Inverter with built-in MPPT charge controller
• Scalable Battery Option: Compatible with 48V battery for extended backup power
• Roof Mount System: Complete Iron Ridge mounting rails, splices, L-feet, fasteners, and bolts
• Complete Wiring & Accessories: Solar combiner box, PV direct burial wire, AC cabling, MC4 crimp kit, gutter box, and installation manual
• Bifacial Panel Technology: Up to 25% more energy harvesting from the rear of panels
• Weather Resistant: Panels rated for 5400 PA snow load and 2400 PA wind load
• Expandable Design: Supports future additions of panels or batteries

Product Specifications

• System Size: 6KW
• Solar Panels: 12x 550W Bifacial Mono Panels (6.6KW)
• Inverter: Sol-Ark 15K Hybrid/Offgrid
• Battery Backup: Optional 48V battery
• Mounting Hardware: Iron Ridge roof mounting rails, splices, L-feet, fasteners, bolts
• Wiring & Accessories Included:
  • 1x Solar Combiner Box
  • 1x 500' PV Direct Burial 10AWG Solar Wire
  • 1x 100' AC Output/Input/Generator Cabling – 6 AWG
  • 1x 20' AC Main Line – 4/0
  • 1x MC4 Crimp Kit
  • 1x Gutter Box
  • Installation Manual
• Panel Warranty: 30-year power warranty

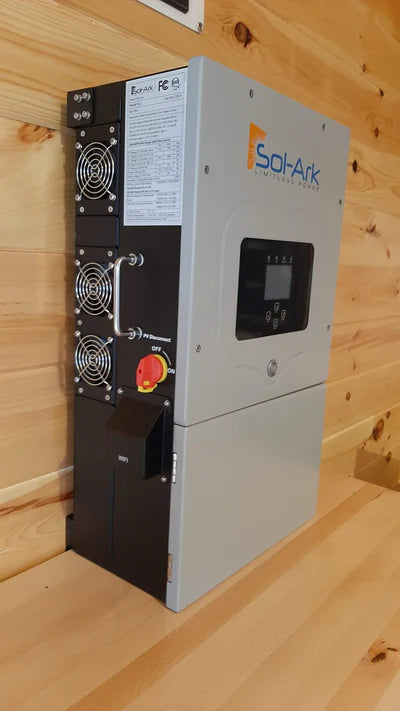

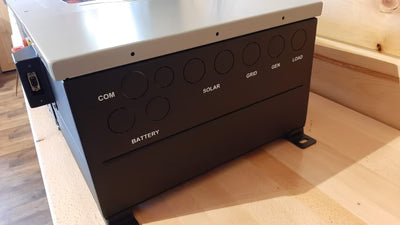

• Sol-Ark 15K Inverter Specs:
  • Output: 120/240V Split Phase
  • Works With or Without Batteries
  • 48V Battery Backup Input (Flood Lead Acid or Lithium)
  • Grid Tie or Offgrid Operation
  • Built-in MPPT Charge Controller – 3x MPPT Inputs
  • Generator Support
  • LCD Touch Screen & WiFi Connectivity
  • DC Transformerless, 97.5% Efficiency
  • NEMA 3R Rated for Outdoor Use
  • 10-Year Warranty
  • Parallel Stacking up to 8 units
  • 4ms Transfer Time from Batteries to Grid Power
