Ozark Mountain Offgrid 6kW Solar Kit - Ground, 32.00kWh Omo 48V Freedom Series

Product Description

The 6KW Complete Offgrid Solar Kit is the perfect starter solution for a complete offgrid home. Equipped with a 32kWh OMO 48V Freedom Series Lithium Battery, this kit provides 32,000 Watts of usable energy. The 6.6KW bifacial solar array produces approximately 29,700 Watts per day based on 4.5 hours of sunlight. Ideal for cabins, smaller homes, or offgrid applications, this system is designed for scalability, allowing for future panel or battery expansions. High-efficiency Sol-Ark inverters and bifacial solar panels ensure reliable power output even in low-light conditions.

Product Features

• High-Output PV Array: 12x 550W Bifacial Mono Solar Panels (6.6KW)

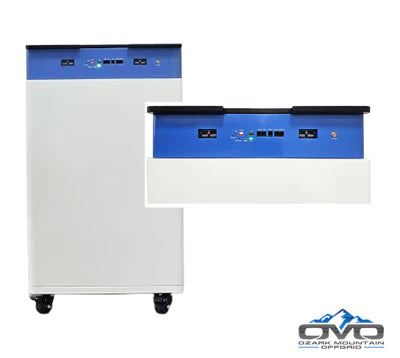

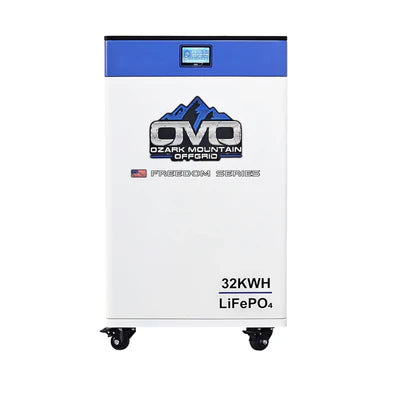

• Advanced Battery Storage: 1x OMO 32KW 48V Freedom Series Heated Lithium Battery with Bluetooth & LCD Readout

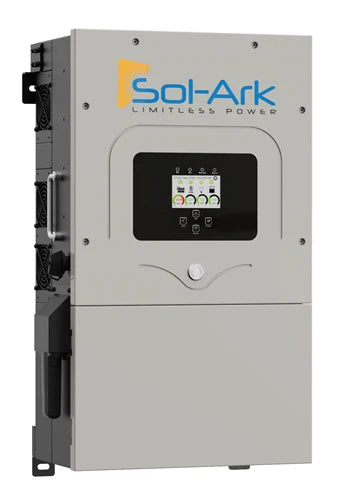

• Efficient Inverter: 1x Sol-Ark 15K Hybrid/Offgrid All-in-One Inverter with built-in MPPT Charge Controller
• Durable Ground Mount System: Iron Ridge Rails, Top Caps, Rail Connectors, Fasteners, and Bolts included
• Expandable Design: Solar combiner box and Anderson battery cables ready for future additions
• Complete Wiring & Accessories: Includes PV Direct Burial wire, AC cabling, MC4 crimp kit, and gutter box
• Reliable Solar Panels: Bifacial double-glass technology harvests up to 25% extra energy from the rear side
• Weather Resistant: 5400 PA snow load and 2400 PA wind load for extreme conditions
• Optional Installation: Custom installation available upon request

Product Specifications

• System Size: 6.6KW
• Panels: 12x 550W Bifacial Mono Solar Panels
• Battery: 1x 32kWh OMO 48V Freedom Series Lithium Battery
• Inverter: 1x Sol-Ark 15K Hybrid/Offgrid Inverter
• Mounting Hardware: Iron Ridge Ground Mount Rails, Top Caps, Rail Connectors, Fasteners, Bolts
• Wiring & Accessories Included:
  • 1x Solar Combiner Box
  • 1x Anderson Plug Battery Cable Set
  • 1x 500' PV Direct Burial 10AWG Solar Wire
  • 1x 100' AC Output/Input/Generator Cabling – 6 AWG
  • 1x 20' 4/0 AC Main Line
  • 1x MC4 Crimp Kit
  • 1x Gutter Box
• Installation Manual: Included
• Panel Warranty: 30-year power warranty
• Inverter Specs:
  • 120/240V Split Phase Output
  • Works With or Without Batteries
  • 48V Battery Backup Input (Flood Lead Acid or Lithium)
  • Grid Tie or Offgrid Operation
  • Built-in MPPT Charge Controller – 3x MPPT Inputs
  • Generator Support
  • LCD Touch Screen & WiFi Connectivity
  • DC Transformerless, 97.5% Efficiency
  • NEMA 3R Rated for Outdoor Use
  • 10-Year Warranty
  • Parallel Stacking Up to 8 Units
  • 4ms Transfer Time from Batteries to Grid Power
