Ozark Mountain Offgrid 6kW Solar Kit - Rails, 32.00kWh Omo 48V Freedom Series

Product Description

The 6KW Complete Offgrid Solar Kit is the perfect energy solution for cabins, small homes, or offgrid living spaces. Featuring a 6.6KW bifacial solar array paired with a 32kWh OMO 48V Freedom Series lithium battery, this system produces approximately 29,700 Watts per day based on 4.5 hours of sunlight. Designed for scalability, it allows for future expansion with additional solar panels or batteries to meet increasing energy demands. Ideal for those seeking reliable, clean, and renewable power for offgrid living.

Product Features

• High-Capacity Solar Array: 12x 550W Bifacial Mono Panels (6.6KW) for maximum energy production
• Advanced Inverter: 1x Sol-Ark 15K Hybrid/Offgrid All-in-One Inverter with built-in MPPT charge controller
• Lithium Battery Backup: 32kWh OMO 48V Freedom Series Heated Battery with Bluetooth & LCD readout
• Roof Mount System: Complete Iron Ridge rails, splices, legs, fasteners, and bolts
• Complete Wiring & Accessories: Solar combiner box, AC wiring, PV direct burial cabling, MC4 crimp kit, gutter box, and Anderson plug battery cable set
• Bifacial Panel Technology: Up to 25% additional energy harvesting from the rear of panels
• Weather Resistant: 5400 PA snow load and 2400 PA wind load for high durability
• Scalable & Expandable: Supports future panel and battery additions for growing energy needs

Product Specifications

• System Size: 6KW
• Solar Panels: 12x 550W Bifacial Mono Panels
• Inverter: Sol-Ark 15K Hybrid/Offgrid All-in-One

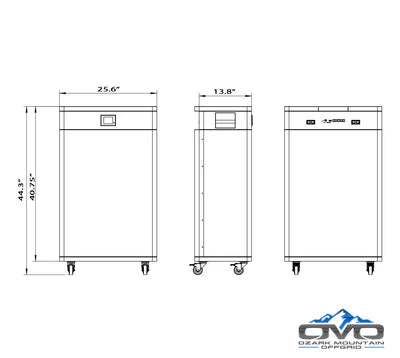

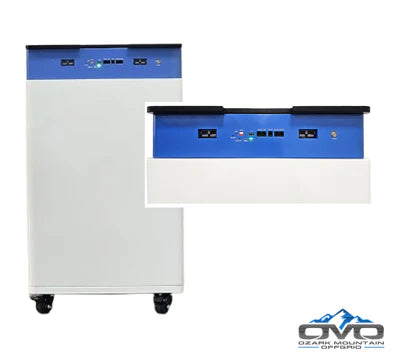

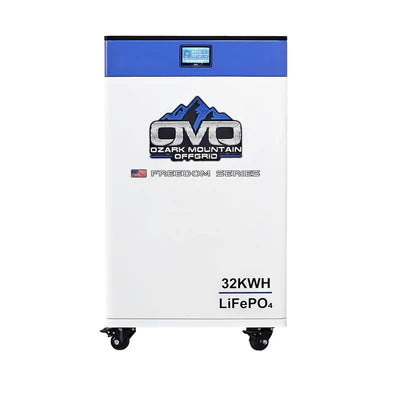

• Battery: 32kWh OMO 48V Freedom Series Lithium Battery
• Mounting Hardware: Iron Ridge Roof Mount Rails, Splices, Legs, Fasteners, Bolts
• Wiring & Accessories Included:
  • 1x Solar Combiner Box
  • 1x Anderson Plug Battery Cable Set
  • 1x Gutter Box
  • 1x 500' PV Direct Burial 10AWG Solar Wire
  • 1x 100' AC Output/Input/Generator Cabling – 6 AWG
  • 1x 20' AC Main Line – 4/0
  • 1x MC4 Crimp Kit
  • Installation Manual
• Panel Warranty: 30-Year Power Warranty

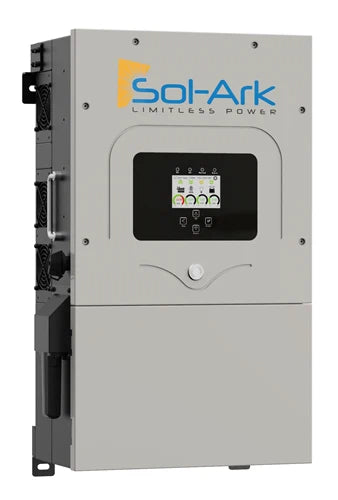

• Sol-Ark 15K Inverter Specs:
  • Output: 120/240V Split Phase
  • Works With or Without Batteries
  • 48V Battery Backup Input (Flood Lead Acid or Lithium)
  • Grid Tie or Offgrid Operation
  • Built-in MPPT Charge Controller – 3x MPPT Inputs
  • Generator Support
  • LCD Touch Screen & WiFi Connectivity
  • DC Transformerless, 97.5% Efficiency
  • NEMA 3R Rated for Outdoor Use
  • 10-Year Warranty
  • Parallel Stacking Up to 8 Units
  • 4ms Transfer Time from Batteries to Grid Power
