Ozark Mountain Offgrid 6kW Solar Kit - Rails, 9.60kWh

Product Description

The 6KW Complete Offgrid Solar Kit is perfect for cabins, small homes, or offgrid starter setups. This kit includes a 6.6KW bifacial solar array, a 15K Sol-Ark hybrid inverter, and a 9.6kWh HomeGrid 48V Stack’d lithium battery. Designed for scalability, the battery is expandable up to 38.4kWh per Stack’d unit, and the system supports future panel or battery additions. The solar array produces approximately 29,700 Watts per day based on 4.5 hours of sunlight.

Product Features

• Solar Array: 12x 550W Bifacial Mono Panels (6.6KW) for high-efficiency energy capture
• Inverter: 1x Sol-Ark 15K Hybrid/Offgrid All-in-One Inverter with built-in MPPT charge controller

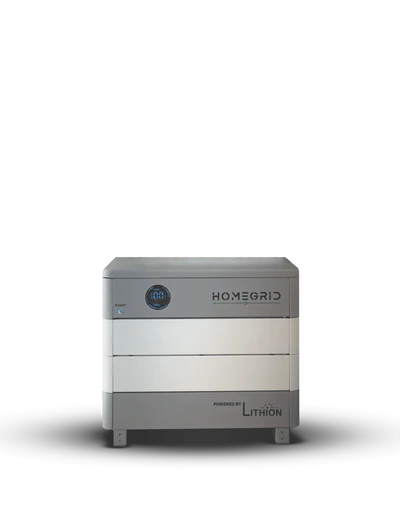

• Battery Backup: 1x 9.6kWh HomeGrid 48V Stack’d Series Lithium Battery (Expandable up to 38.4kWh per Stack’d unit)
• Mounting Hardware: Complete Iron Ridge roof mounting rails, splices, legs, fasteners, and bolts
• Wiring & Accessories Included:
  • Solar combiner box for future expansion
  • Anderson plug battery cable set
  • Gutter box
  • 500' PV direct burial 10AWG solar wire
  • 100' AC output/input/generator cabling – 6 AWG
  • 20' AC main line – 4/0
  • MC4 crimp kit
  • Installation manual
• Bifacial Panel Technology: Increases energy harvest by up to 25% from the rear of the panels
• Durability: 5400 PA snow load, 2400 PA wind load, 30-year power warranty

Product Specifications

• System Size: 6KW
• Solar Panels: 12x 550W Bifacial Mono Panels (6.6KW)
• Inverter: Sol-Ark 15K Hybrid/Offgrid All-in-One
• Battery: 9.6kWh HomeGrid 48V Stack’d Series Lithium Battery (Expandable to 38.4kWh)
• Mounting Hardware: Iron Ridge Roof Mount Rails, Splices, Legs, Fasteners, Bolts
• Wiring & Accessories Included:
  • 1x Solar Combiner Box
  • 1x Anderson Plug Battery Cable Set
  • 1x Gutter Box
  • 1x 500' PV Direct Burial 10AWG Solar Wire
  • 1x 100' AC Output/Input/Generator Cabling – 6 AWG
  • 1x 20' AC Main Line – 4/0
  • 1x MC4 Crimp Kit
  • Installation Manual

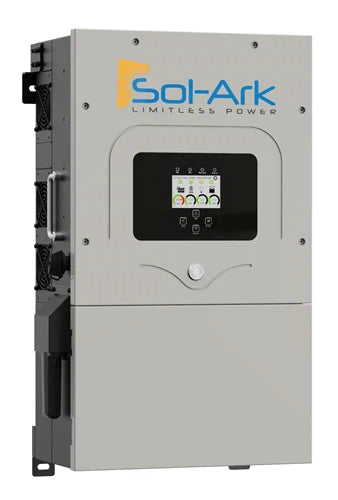

• Sol-Ark 15K Inverter Specs

• Output: 120/240V Split Phase
• Can operate with or without batteries
• 48V Battery Backup Input (Flood Lead Acid or Lithium)
• Grid Tie or Offgrid Operation
• Built-in MPPT Charge Controller – 3x MPPT Inputs
• Generator Support
• LCD Touch Screen & WiFi Connectivity
• DC Transformerless, 97.5% Efficiency
• NEMA 3R Rated for Outdoor Use
• 10-Year Warranty
• Parallel Stacking up to 8 units
• 4ms Transfer time from Batteries to Grid Power
