Ozark Mountain Offgrid 80kW Solar Kit - Roof, 32.00kWh Omo 48V Freedom Series

Product Description

The 80KW Complete Offgrid Solar Kit is a high-capacity solution ideal for large homes, farms, or off-grid properties with significant energy needs. Featuring an 80.3KW bifacial solar array, 5x 15K Sol-Ark inverters, and a 32kWh OMO 48V Freedom Series lithium battery, this system produces approximately 361,350 Watts per day based on 4.5 hours of sunlight. The lithium battery provides reliable energy storage and can be paired with additional panels or batteries in the future for a fully scalable offgrid solution.

Product Features

• Solar Array: 146x 550W Bifacial Mono Solar Panels (80.3KW) for maximum energy capture and efficiency
• Inverters: 5x Sol-Ark 15K Hybrid/Offgrid All-in-One with built-in MPPT charge controllers

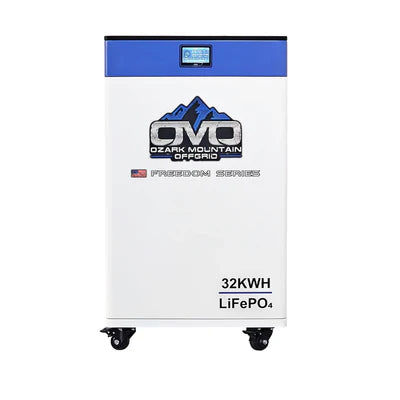

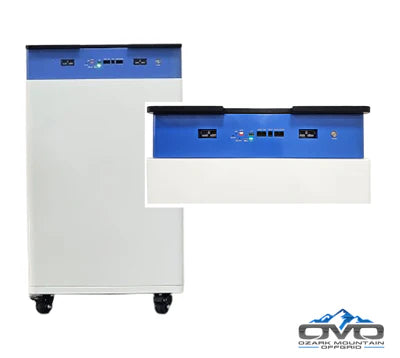

• Battery Backup: 1x OMO 32KW 48V Freedom Series Heated Lithium Battery with Bluetooth and LCD readout
• Roof Mount System: Complete Iron Ridge rails, splices, L-feet, fasteners, and bolts for secure installation
• Comprehensive Wiring & Accessories: 5x solar PV combiner boxes, Anderson plug battery cables, MC4 cabling, AC wiring, AC combiner kit, wire gutter boxes, MC4 crimper tool, and installation manual
• Bifacial Panel Technology: Additional energy harvesting from the rear of panels (up to 25%)
• Durable & Weather Resistant: 5400 PA snow load, 2400 PA wind load, 30-year power warranty
• Expandable & Scalable: Easily add more panels or batteries as energy requirements increase
• Reliable Offgrid Solution: Can operate without a battery attached, compatible with future battery expansion

Product Specifications

• System Size: 80KW
• Solar Panels: 146x 550W Bifacial Mono Panels (80.3KW)
• Inverters: 5x Sol-Ark 15K Hybrid/Offgrid All-in-One

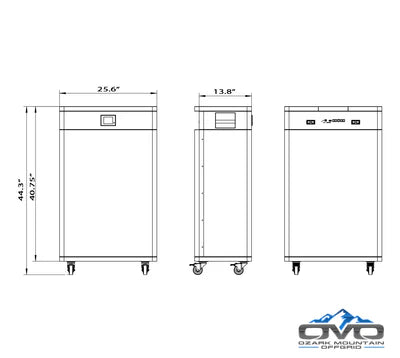

• Battery: 32kWh OMO 48V Freedom Series Heated Lithium Battery
• Mounting Hardware: Iron Ridge Roof Mount Rails, Splices, L-Feet, Fasteners, Bolts
• Wiring & Accessories Included:
  • 5x Solar PV Combiner Boxes
  • 2x 500' Spool 10AWG MC4 Solar Array Cabling
  • 1x MC4 Crimper Tool Set
  • 2x 100' AC Output/Input/Generator Cabling – 6 AWG
  • 2x 20' AC Main Line – 2/0
  • 5x Wire Gutter Boxes
  • 1x AC Combiner Box Kit
  • 1x Anderson Plug Battery Cable Set
  • 1x Installation Manual
• Sol-Ark 15K Inverter Specs
• Output: 120/240V Split Phase
• Can operate with or without batteries
• 48V Battery Backup Input (Flood Lead Acid or Lithium)
• Grid Tie or Offgrid Operation
• Built-in MPPT Charge Controller – 3x MPPT Inputs
• Generator Support
• LCD Touch Screen & WiFi Connectivity
• DC Transformerless, 97.5% Efficiency
• NEMA 3R Rated for Outdoor Use
• 10-Year Warranty
• Parallel Stacking up to 8 units
• 4ms Transfer time from Batteries to Grid Power
