Ozark Mountain Offgrid 80kW Solar Kit - Roof or Ground Mount

Product Description

The 80KW Complete Offgrid Solar Kit is a high-capacity energy solution designed for large homes, farms, or off-grid properties with substantial energy requirements. Featuring an 80.3KW bifacial solar array and 5x 15K Sol-Ark inverters, this system produces approximately 361,350 Watts per day based on 4.5 hours of sunlight. The kit can operate without a battery, offering flexibility to add a 48V battery at any time. Designed for scalability, it allows future expansion with additional panels or batteries, providing a reliable offgrid power solution.

Product Features

• Solar Array: 146x 550W Bifacial Mono Solar Panels (80.3KW) for maximum energy capture
• Inverters: 5x Sol-Ark 15K Hybrid/Offgrid All-in-One with built-in MPPT charge controllers
• Mounting System: Complete Iron Ridge mounting rails, splices, legs, fasteners, and bolts (Mill Finish)
• Comprehensive Wiring & Accessories: 5x solar PV combiner boxes, 2x 500' MC4 solar array cabling, MC4 crimper tool, AC cabling, AC combiner kit, wire gutter boxes, and installation manual
• Bifacial Panel Technology: Additional energy harvesting from rear of panels (up to 25%)
• Durable & Weather Resistant: 5400 PA snow load, 2400 PA wind load, 30-year power warranty
• Expandable & Scalable: Easily add more panels or batteries as your energy needs grow
• Reliable Offgrid Operation: Can run without a battery attached, compatible with future battery expansion
• Optional Installation: Professional installation available for custom pricing based on your location

Product Specifications

• System Size: 80KW
• Solar Panels: 146x 550W Bifacial Mono Panels (80.3KW)
• Inverters: 5x Sol-Ark 15K Hybrid/Offgrid All-in-One
• Mounting Hardware: Iron Ridge Mounting Rails, Splices, Legs, Fasteners, Bolts – Mill Finish
• Wiring & Accessories Included:
  • 5x Solar PV Combiner Boxes
  • 2x 500' Spool 10AWG MC4 Solar Array Cabling
  • 1x MC4 Crimper Tool Set
  • 2x 100' AC Output/Input/Generator Cabling – 6 AWG
  • 2x 20' AC Main Line – 2/0
  • 5x Wire Gutter Boxes

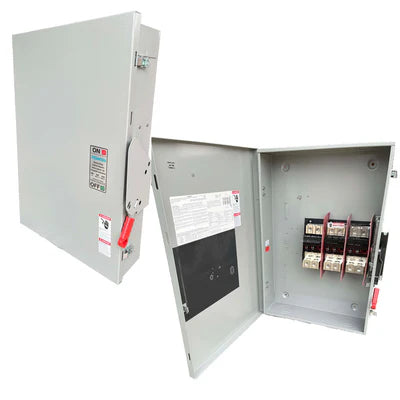

  • 1x AC Combiner Box Kit
  • 1x Installation Manual
• Sol-Ark 15K Inverter Specs
• Output: 120/240V Split Phase
• Can operate with or without batteries
• 48V Battery Backup Input (Flood Lead Acid or Lithium)
• Grid Tie or Offgrid Operation
• Built-in MPPT Charge Controller – 3x MPPT Inputs
• Generator Support
• LCD Touch Screen & WiFi Connectivity
• DC Transformerless, 97.5% Efficiency
• NEMA 3R Rated for Outdoor Use
• 10-Year Warranty
• Parallel Stacking up to 8 units
• 4ms Transfer time from Batteries to Grid Power
