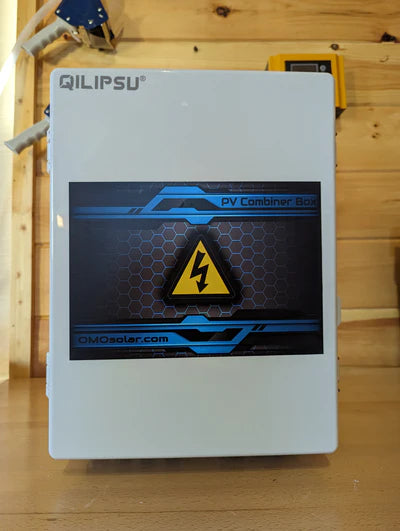

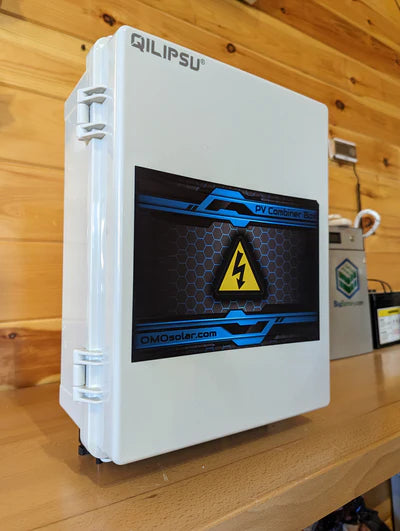

Ozark Mountain Combiner Box - 4 String Input - for Sol-Ark 12K Installations

Product Description

The Solar Combiner Box is designed to efficiently connect multiple solar panel strings into a single output, making it ideal for off-grid or hybrid Sol-Ark inverter systems. With built-in lightning and surge protection, resettable breakers, and a waterproof enclosure, this combiner box ensures safe, reliable, and organized solar power management for residential or commercial installations. Compatible with Sol-Ark inverters featuring 3 MPPT input channels, it supports future system expansion with ease.

Product Features

• String Input Capacity: 4 strings total, 2 strings per breaker input (1000V / 25A per string)
• Circuit Output: 2 circuits, each combining 2 strings with DC input and output breakers rated at 63A
• Lightning & Surge Protection: Protects your system from electrical spikes and surges
• Resettable Breakers: Easily reset without replacing components after overload or fault
• Sol-Ark Compatible: Designed for use with Sol-Ark inverters with 3 MPPT input channels
• Waterproof Enclosure: Durable, weather-resistant housing suitable for outdoor installation
• Expandable Design: Supports future additions of solar strings for larger systems

Product Specifications

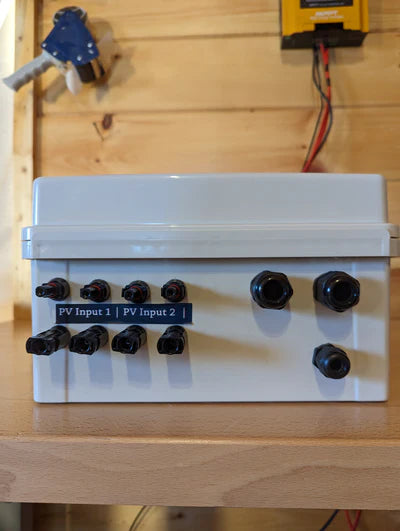

• Inputs: 4 string inputs (2 strings per breaker, 1000V / 25A each)
• Outputs: 2 circuit outputs with DC breakers rated 63A
• Protection Features: Lightning and surge protection, resettable breakers
• Compatibility: Sol-Ark inverters with 3 MPPT input channels
• Enclosure: Waterproof, weather-resistant
• Installation: Indoor or outdoor use
