Ozark Mountain Combiner Box - 6 String for Sol-Ark 15K Installations

Product Description

The Solar Combiner Box is designed for efficiently connecting multiple solar panel strings into a single output for streamlined energy management. Perfect for Sol-Ark inverter setups, this combiner box simplifies wiring while providing safety and protection for your offgrid or hybrid solar system. Built with a waterproof enclosure and surge protection, it ensures reliable operation in all weather conditions.

Product Features

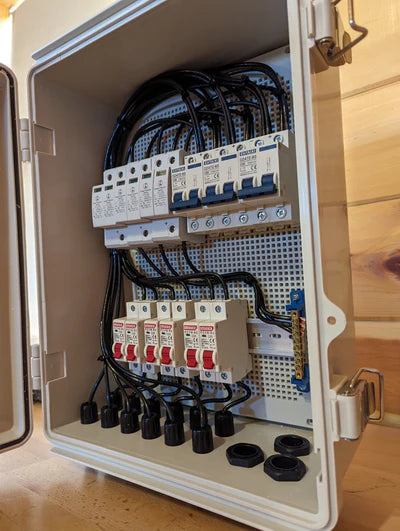

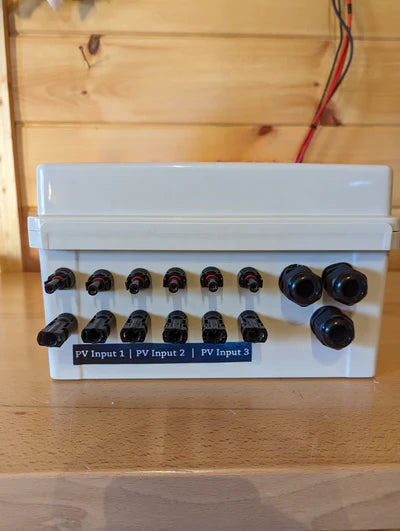

• Multiple String Inputs: 6 string inputs, 2 strings per breaker input (1000V / 25A per string)
• Circuit Outputs: 3 combined circuits, each with 2 strings and DC input/output breakers (DC output breakers rated at 63A)
• Lightning & Surge Protection: Protects your solar array from power spikes and electrical surges
• Resettable Breakers: Easy reset on all outputs for maintenance and safety
• MPPT Compatible: Designed for Sol-Ark inverters with 3 MPPT input channels
• Weatherproof Design: Waterproof enclosure ensures reliable outdoor installation

Product Specifications

• Input Voltage: 1000V per string
• Input Current: 25A per string
• Number of Inputs: 6 strings (2 strings per breaker)
• Number of Outputs: 3 circuits (2 strings combined per circuit)
• Output Breaker Rating: 63A DC
• Surge Protection: Built-in lightning/surge protection
• Breaker Type: Resettable
• Compatibility: Sol-Ark inverters with 3 MPPT channels
• Enclosure: Waterproof for outdoor use
