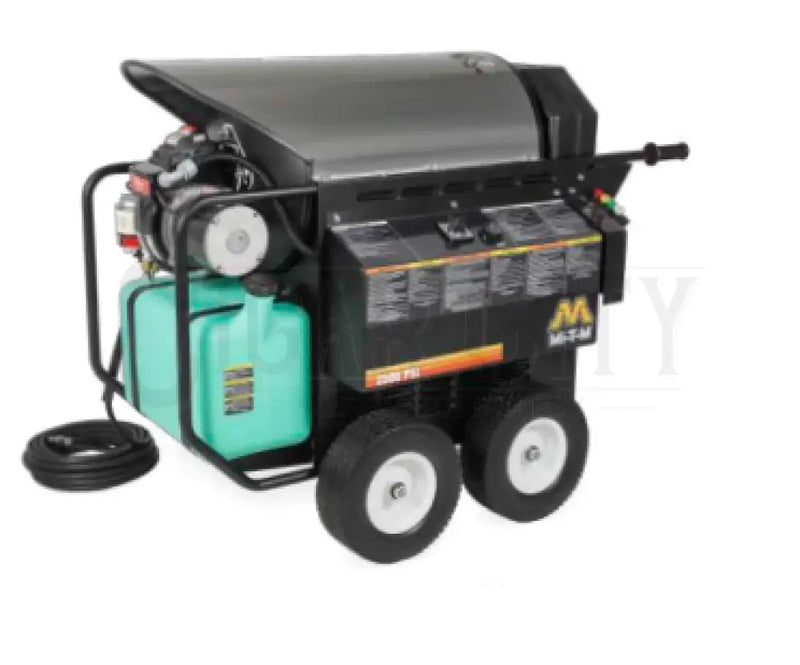

Mi-T-M HHB Belt Drive Series Hot Water Pressure Washer - 2.8gpm, 1000PSI, AR Pump HHB-1003-0E1A

Product Description

The Mi-T-M HHB-1003-0E1A is a compact, heavy-duty hot water pressure washer designed for industrial and commercial applications that require consistent, reliable cleaning power. With a belt drive triplex piston AR Pump delivering 2.8 GPM at 1000 PSI, this unit is ideal for light- to medium-duty hot water cleaning tasks such as equipment maintenance, fleet washing, and outdoor surfaces.

Built with a powder-coated steel frame assembly and open drip-proof electric motor, the HHB-1003-0E1A is designed for durability and long-lasting operation. Its stainless-steel coil wrap with horizontal schedule 80 pipe coil and adjustable thermostat ensure precise temperature control. The unit features a fuel-fired burner compatible with No. 1 or No. 2 fuel oil, diesel, or kerosene (not approved for bio-fuel) for efficient heating.

Product Features

• Compact & Powerful – 2.8 GPM at 1000 PSI for light- to medium-duty cleaning tasks.
• Durable Pump System – Belt drive triplex piston AR Pump with ceramic plungers.
• Efficient Heating – Fuel-fired burner with 10-gallon polyethylene fuel tank.
• Precise Temperature Control – Stainless-steel horizontal coil with adjustable thermostat.
• User-Friendly Operation – Quick-connect nozzles, dual lance with trigger gun, and 50-foot hose.
• Portable & Stable – 13-inch flat-free tires for easy mobility.
• Safe & Certified – ETL certified for US and Canada, with Racor fuel filter/water separator.
• Built to Last – Powder-coated steel frame and open drip-proof electric motor.

Product Specifications

• Brand: Mi-T-M
• Series: HHB Belt Drive Series
• Model: HHB-1003-0E1A
• Type: Hot Water Pressure Washer
• Flow Rate: 2.8 GPM
• Pressure: 1000 PSI
• Pump: Belt drive triplex piston AR Pump with ceramic plungers
• Unloader: Factory preset
• Motor: Open drip-proof electric motor
• Frame: Powder-coated steel assembly
• Coil: Stainless-steel horizontal schedule 80 pipe coil
• Burner: Fuel-fired – No. 1 or No. 2 fuel oil, diesel, or kerosene (not approved for bio-fuel)
• Fuel Tank: 10-gallon polyethylene
• Float Tank: Polyethylene with inlet filter screen
• Nozzles: Quick-connect 0°, 15°, 25°, 40°, and low-pressure nozzle
• Hose: 50-foot x 3/8-inch high-pressure hose with quick connects
• Lance & Gun: Adjustable pressure insulated dual lance with trigger gun
• Tires: 13-inch flat-free
• Warranty: 1-year limited electric motor warranty
• Certifications: ETL Certified – US & Canada
• Lead Time: Approx. 4 weeks
