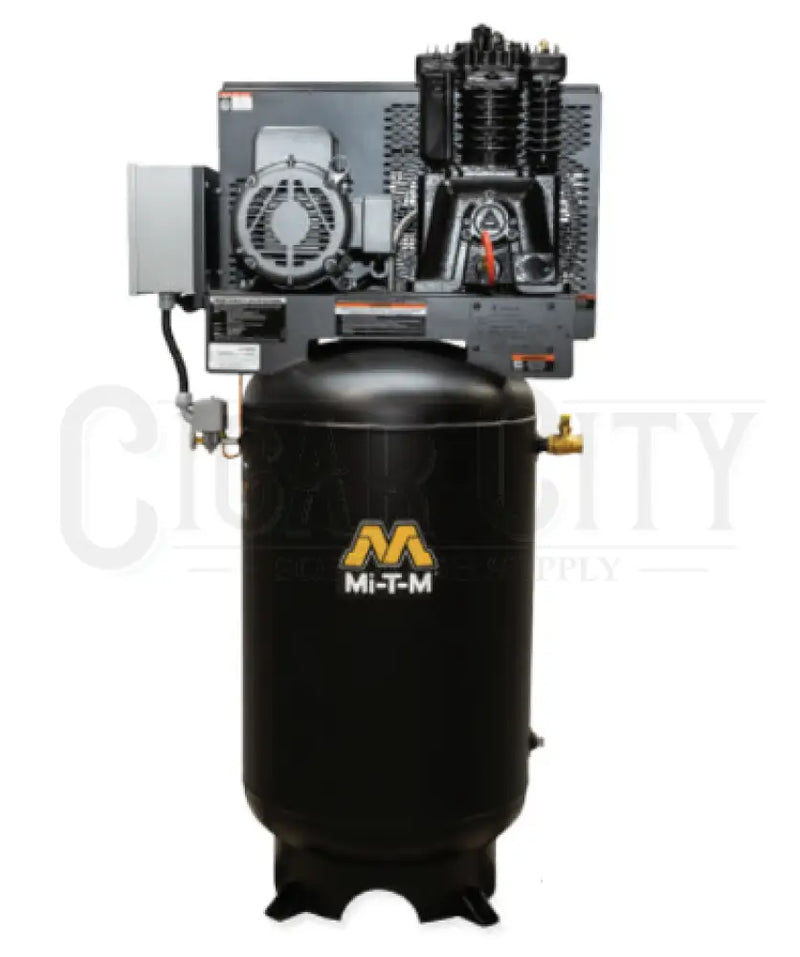

Mi-T-M Electric Air Compressors Simplex vertical model 23.5 @ 175, 7.5 HP, 80-gallon ACS-46375-80V

The Mi-T-M ACS-46375-80V is a high-capacity, industrial-grade vertical electric air compressor built for heavy-duty commercial and workshop applications. Delivering 23.5 CFM at 175 PSI with a 7.5 HP motor, this vertical simplex unit provides a reliable air supply for powering pneumatic tools, equipment, and large-scale operations.

Certified to the ASME Boiler and Pressure Vessel Code – U, this compressor is perfect for industrial workshops, commercial garages, and other applications requiring dependable and continuous compressed air. Backed by a 1-year limited electric motor warranty, it combines performance, safety, and longevity.

Why Choose the Mi-T-M ACS-46375-80V Electric Air Compressor?

• High-Performance Output – 23.5 CFM at 175 PSI for industrial-grade air supply.

• Durable Pump System – Two-stage compressor pump with splash lubrication.

• Safe & Efficient Operation – ASME-certified tank with magnetic start and thermal overload protection.

• Vertical Space-Saving Design – Optimized for workshop or facility layouts.

• Maintenance-Friendly – Equipped with an hour meter to track service intervals.

• Warranty & Certification – 1-year limited electric motor warranty and ASME-certified for safety.

Specifications

• Brand: Mi-T-M
• Series: Simplex Vertical Electric Air Compressors
• Model: ACS-46375-80V
• Type: Electric Air Compressor – Vertical
• CFM: 23.5 @ 175 PSI
• Motor Power: 7.5 HP
• Compressor Pump: Two-stage, splash lubricated
• Discharge Hose: Stainless-steel braided
• Receiver Tank: 80-gallon, ASME-certified, powder coated
• Start Type: Magnetic start with thermal overload protection
• Maintenance: Hour meter included
• Warranty: 1-year limited electric motor warranty
• Certification: ASME Boiler and Pressure Vessel Code – U
• Lead Time: Approx. 4 weeks
